Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

FIAT : 51812053+55213545
FIAT : 51902631+55213545

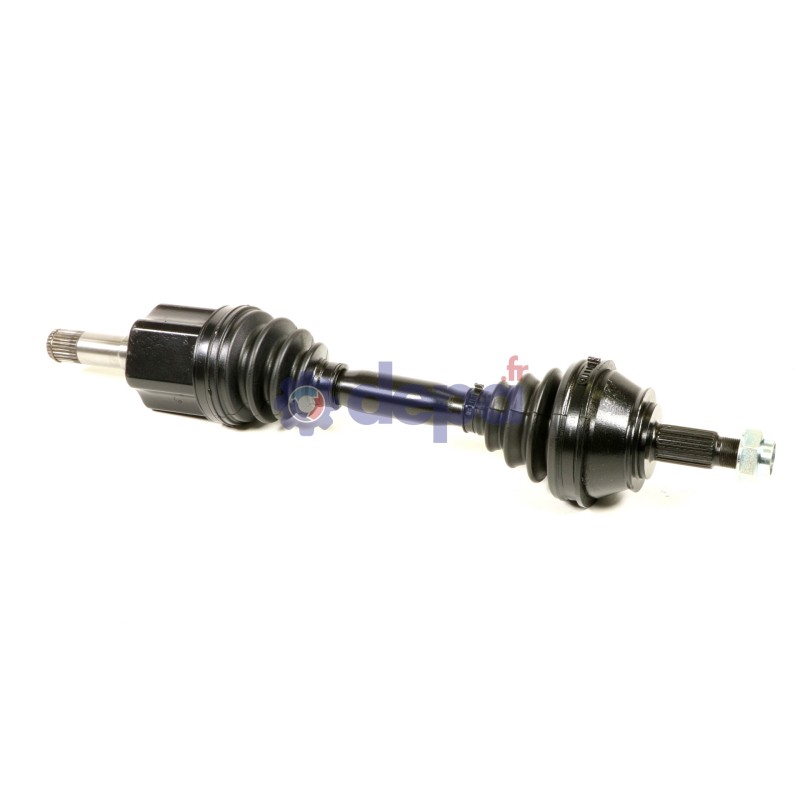

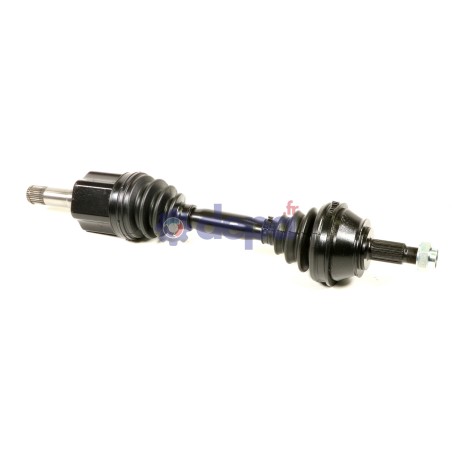

FIAT BRAVO II LEFT-SIDE

Name: FIAT BRAVO II LEFT-SIDE
Brand: Depa
SKU: 3764150
Price: 167.49 EUR
Availability: OutOfStock

Ref : 3764150

Matching vehicles :

DELTA 3 - BRAVO II

Family :TR

Collapsed length : 612 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 25 mm

Thread pitch type : 24X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 29.5 mm

Housing diameter : 80 mm

Length of the gearbox output without seal seat : 78 mm

Number of external splines : 27

Number of splines on inner race : 27

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29.5 mm

Diamètre du bol : 100.5 mm

Shoulder diameter : 58.6 mm

Nombre de cannelures extérieures : 27

Nombre de cannelures sur la noix : 27

SOUFFLET COTE BOITE

Diameter (big) : 75 mm

Diameter (little) : 25.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 46.7 mm

Height : 23 mm

Number of splines : 27

Sealing kit	COTE ROUE	5026
	COTE ROUE	5036
	COTE BOITE	6182
	COTE BOITE	6113
CV joint	COTE ROUE	JAL07
CV joint	COTE BOITE	CBMAL11GT
Fixation	COTE ROUE	EC021
Tripod joint	COTE BOITE	TRIAL11
