Catalog

Search by vehicle

Category :

Transmission

Return

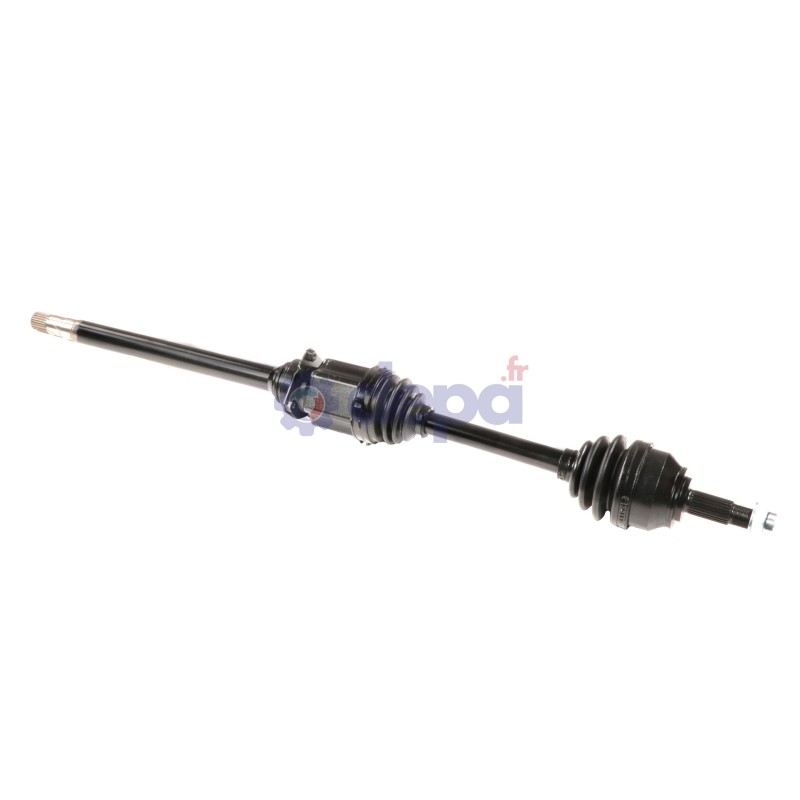

FIAT TIPO II AUTO D

Name: FIAT TIPO II AUTO D
Brand: Depa
SKU: 3765560
Price: 244.32 EUR
Availability: OutOfStock

Ref : 3765560

Matching vehicles :

TIPO II

Family :TR

Compressed length : 985 mm

ABS on the vehicle : Yes

COTE ROUE

Observations : Flange Ø71mm

Type and position (snap ring/circlip) : Centered snap ring

Number of external splines : 25

Diamètre du bol : 90 mm

Number of splines on inner race : 26

Shoulder diameter : 52 mm

Diamètre des cannelures extérieures : 27 mm

COTE BOITE

Length of the gearbox output without seal seat : 54 mm

Housing diameter : 72.3 mm

Length of the shaft (including bearing unit) : 433 mm

Outer spline diameter : 27 mm

Nombre de cannelures extérieures : 25

Seal seat diameter : 30 mm

Sealing kit	COTE ROUE	T3037
		T3034
		T3010
		5020
	COTE BOITE	6085
FIXATION	COTE ROUE	EC021
CV joint	COTE ROUE	JF15
CV joint	COTE BOITE	PALCBMF5560DT
ROULEMENT	COTE BOITE	RLT007
TRIAXE	COTE BOITE	TRIAL70

Equivalence to manufacturer references

FIAT : 52061593+55270992
FIAT : 52018003+55270992
FIAT : 52129592+55270992
