Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

FIAT : 1366929080
FIAT : 46857067

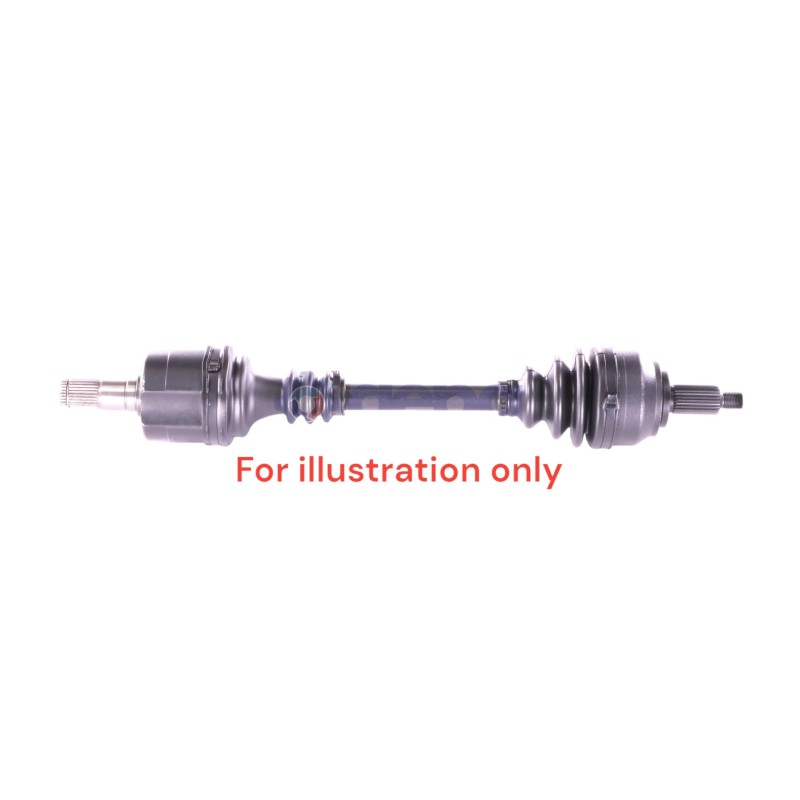

FIAT DUCATO 2 ELECTRIC RIGHT-SIDE

Name: FIAT DUCATO 2 ELECTRIC RIGHT-SIDE
Brand: Depa
SKU: 3766900
Price: 606.13 EUR
Availability: OutOfStock

Ref : 3766900

Matching vehicles :

DUCATO 2

Family :TR

Collapsed length : 1160 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Thread pitch type : 33X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 34 mm

Housing diameter : 85 mm

Length of the shaft (including bearing unit) : 442 mm

Length of the gearbox output without seal seat : 62 mm

Number of external splines : 31

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 36 mm

Diamètre du bol : 106 mm

Shoulder diameter : 71.5 mm

Nombre de cannelures extérieures : 35

Number of splines on inner race : 29

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 16 mm

SOUFFLET COTE BOITE

Diameter (big) : 82 mm

Diameter (little) : 29 mm

Beads thickness : 16 mm

Length : 95 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 42 mm

Height : 32.5 mm

Number of splines : 29

CV joint	COTE ROUE	JC72
CV joint	COTE BOITE	PALCBMF69DT
Sealing kit	COTE ROUE	5036
Sealing kit	COTE BOITE	6120
Fixation	COTE ROUE	EC030
Bearing	COTE BOITE	RLT005
Tripod joint	COTE BOITE	TRIC71
