Catalog

Search by vehicle

Category :

Transmission

Return

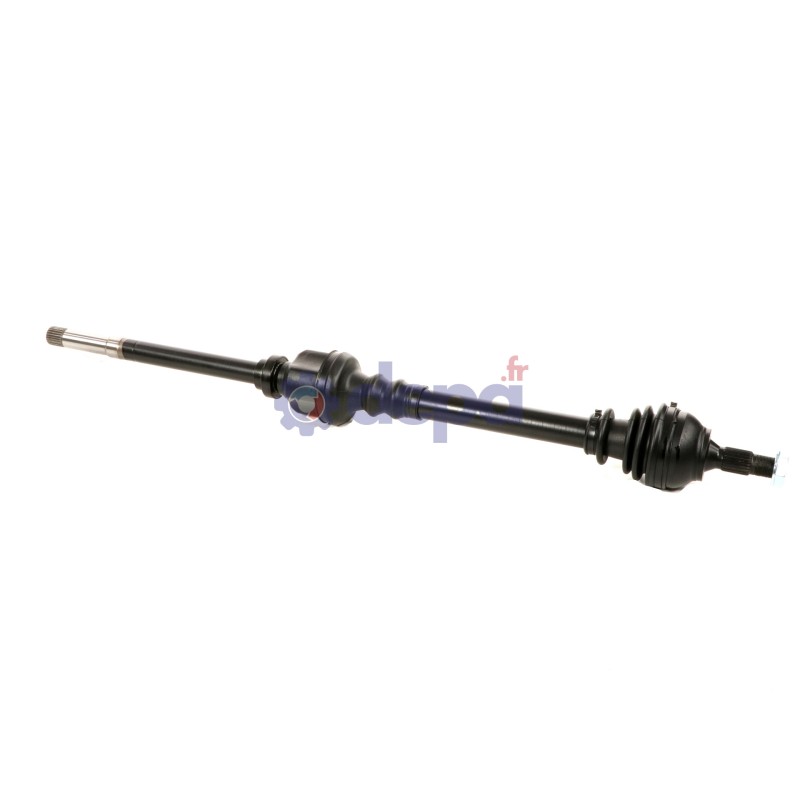

PEUGEOT 307 HDI/CITROEN C4 RIGHT-SIDE

Name: PEUGEOT 307 HDI/CITROEN C4 RIGHT-SIDE
Brand: Depa
SKU: 3082000
Price: 127.65 EUR
Availability: InStock

Ref : 3082000

Matching vehicles :

PARTNER 2 - PARTNER TEPEE - BERLINGO 2 - 307

Family :TR

Height : 13.5 mm

Length of the shaft (including bearing unit) : 350 mm

Non-compressed length : 950 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 30 mm

Outer spline diameter : 26 mm

Housing diameter : 79 mm

Length of the shaft (including bearing unit) : 350 mm

Length of the gearbox output without seal seat : 96 mm

Number of external splines : 24

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 86 mm

Shoulder diameter : 60 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 34

Type and position (snap ring/circlip) : Internal snap ring

JONC COTE ROUE

Outer diameter : 27 mm

Thickness : 1.5 mm

ROULEMENT COTE BOITE

Diamètre extérieur : 55 mm

Inner diameter : 30 mm

Width : 13 mm

SOUFFLET COTE BOITE

Diameter (big) : 76 mm

Diameter (little) : 34 mm

Length : 100 mm

Number of grooves : 1

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 74 mm

Diamètre (petit) : 28 mm

Longueur : 115 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 26 mm

Number of splines : 34

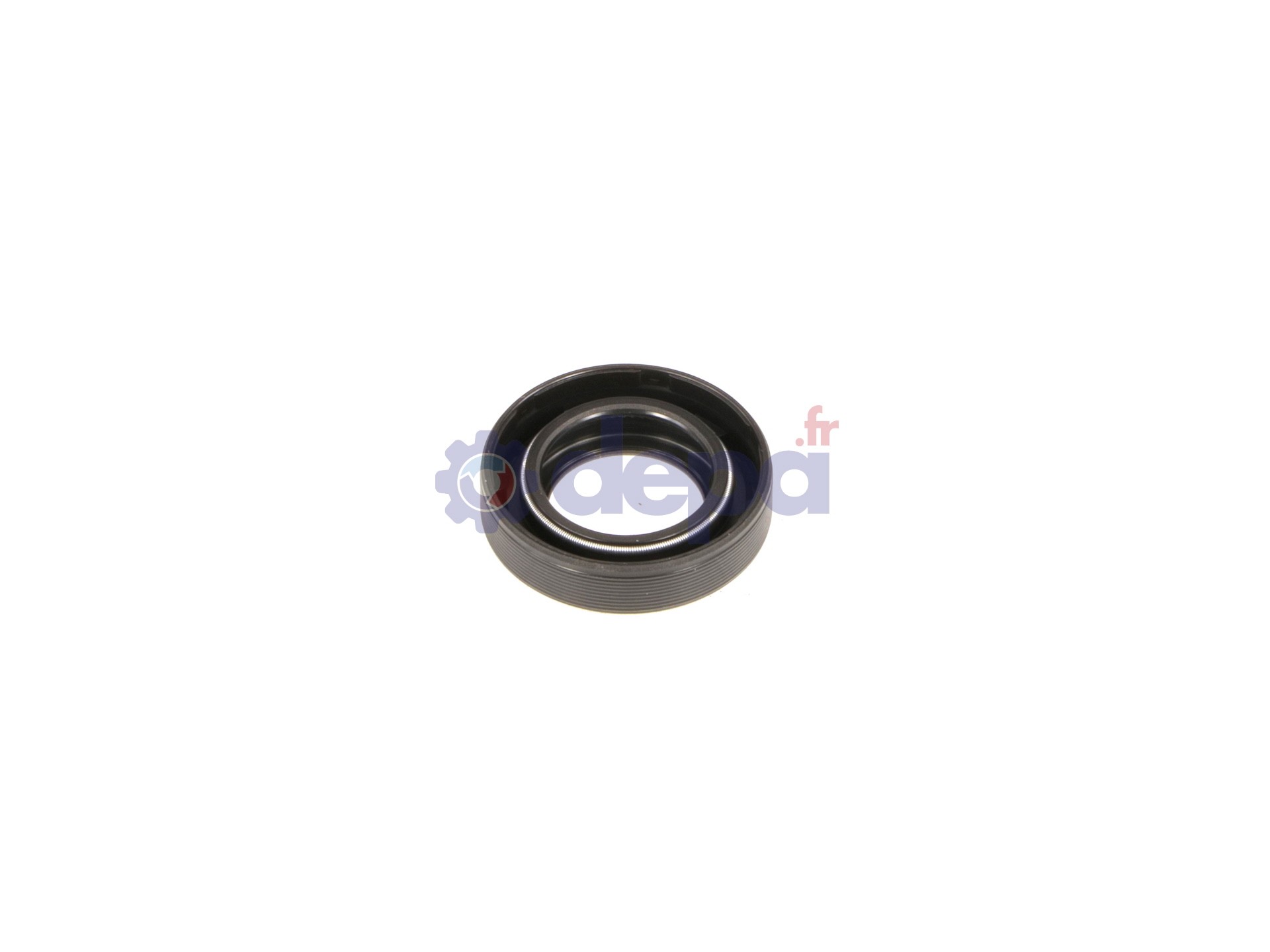

Sealing kit	COTE ROUE	T3005
		T3061
		T3008
		5004
		5053
	COTE BOITE	6034
		6031
		6137
		6065
		6106
CV joint	COTE ROUE	JP10
CV joint	COTE BOITE	PALCBMP45DT
Fixation	COTE ROUE	EC008
Tripod joint	COTE BOITE	TRIC43
Bearing	COTE BOITE	RLT017
Transmission seal		B2990

Equivalence to manufacturer references

PEUGEOT : 1677686180
PEUGEOT : 3273AE
PEUGEOT : 3273LP
PEUGEOT : 9812781280
