Catalog

Search by vehicle

Category :

Transmission

Return

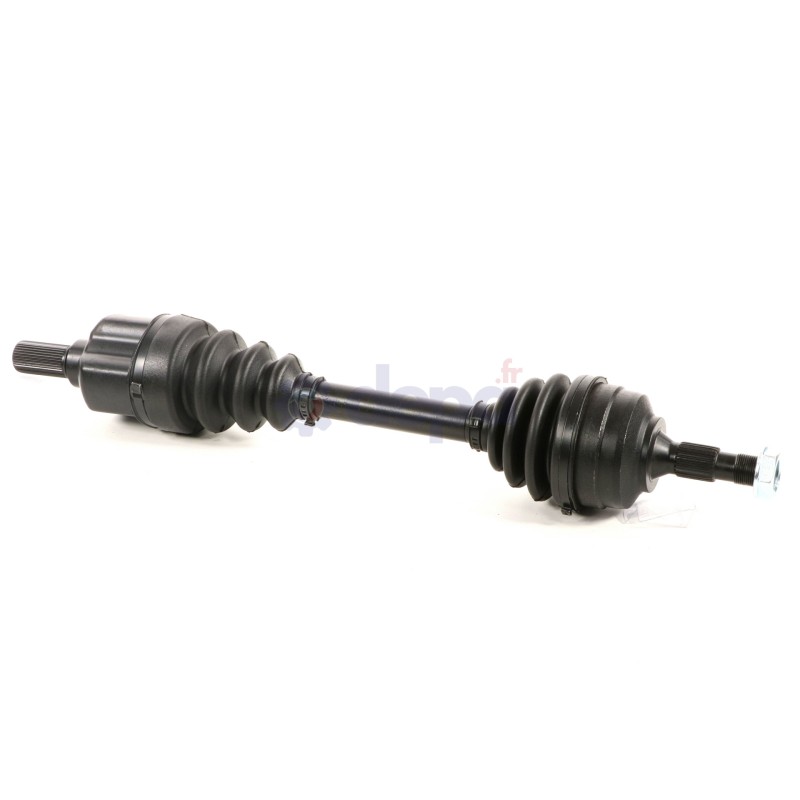

C4 GD PIC/PEUGEOT 307 HDI AUTOMATIC TRANSMISSION LEFT-SIDE

Name: C4 GD PIC/PEUGEOT 307 HDI AUTOMATIC TRANSMISSION LEFT-SIDE
Brand: Depa
SKU: 3084450
Price: 160.59 EUR
Availability: InStock

Ref : 3084450

Matching vehicles :

C4 PICASSO - C4 GRAND PICASSO - C4 - 307

Family :TR

Height : 13.5 mm

Non-compressed length : 645 mm

ABS on the vehicle : Yes

Thread pitch type : 24X150

Nut type : Flat

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 28.5 mm

Housing diameter : 77 mm

Length of the gearbox output without seal seat : 50 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 100 mm

Shoulder diameter : 59 mm

Nombre de cannelures extérieures : 25

Number of splines on inner race : 39

Observations :

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 76 mm

Diameter (little) : 39 mm

Beads thickness : 14 mm

Length : 84 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 96 mm

Diamètre (petit) : 23 mm

Longueur : 96 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39 mm

Height : 28 mm

Number of splines : 39

Sealing kit	COTE ROUE	T3071
		T3070
		T3106
		5024
		5059
		5102
	COTE BOITE	6112
	COTE BOITE	6115
CV joint	COTE ROUE	JC54
CV joint	COTE BOITE	CBMP44GT
Fixation	COTE ROUE	EC008
Spring	COTE BOITE	REC44
Tripod joint	COTE BOITE	TRIC44

Equivalence to manufacturer references

CITROËN : 3272NG
CITROËN : 3272RF
CITROËN : 3272RG
PEUGEOT : 3272NE
