Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

Equivalence to manufacturer references

CITROËN : 1609610080
CITROËN : 9804894180

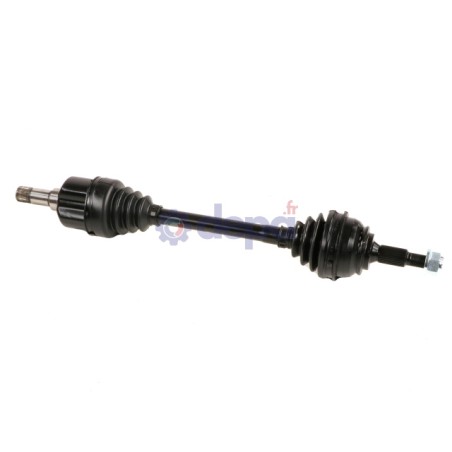

CITROEN C4 PICASSO II LEFT-SIDE

Name: CITROEN C4 PICASSO II LEFT-SIDE
Brand: Depa
SKU: 3088350
Price: 183.54 EUR
Availability: InStock

Ref : 3088350

Matching vehicles :

C4 SPACETOURER - C4 GRAND PICASSO II - C4 PICASSO II

Family :TR

Collapsed length : 670 mm

Non-collapsed length : 705 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 25 mm

Thread pitch type : 22X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 28 mm

Housing diameter : 77 mm

Length of the gearbox output without seal seat : 62 mm

Number of external splines : 37

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28.5 mm

Diamètre du bol : 95 mm

Shoulder diameter : 58.5 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 39

Observations : Threading length 35mm Ø22mm

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 77 mm

Diameter (little) : 29 mm

Beads thickness : 14.5 mm

Length : 84 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39 mm

Height : 28 mm

Number of splines : 39

KITS ETANCHEITE TR neuf	COTE ROUE	T3071
	COTE ROUE	5020
	COTE BOITE	6115
JOINT HOMO Echange	COTE ROUE	JP8570
JOINT HOMO Echange	COTE BOITE	CBMP8250GT
FIXATION	COTE ROUE	EC011
TRIAXE	COTE BOITE	TRIC44
RESSORT	COTE BOITE	REC44
