Catalog

Search by vehicle

Category :

Transmission

Return

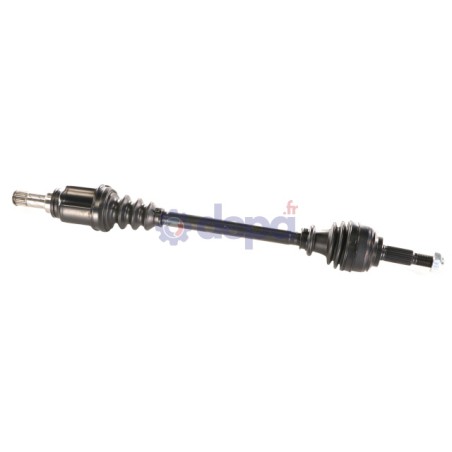

RENAULT CAPTUR LEFT-SIDE

Name: RENAULT CAPTUR LEFT-SIDE
Brand: Depa
SKU: 3101050
Price: 203.93 EUR
Availability: InStock

Ref : 3101050

Matching vehicles :

CAPTUR

Family :TR

Height : 22 mm

Non-compressed length : 710 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26.5 mm

Housing diameter : 64 mm

Length of the gearbox output without seal seat : 63 mm

Number of external splines : 26

Number of splines on inner race : 21

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25 mm

Diamètre du bol : 75 mm

Shoulder diameter : 52.5 mm

Nombre de cannelures extérieures : 23

Nombre de cannelures sur la noix : 21

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 66 mm

Diameter (little) : 17 mm

Beads thickness : 12 mm

Length : 85 mm

Type of material : NITRILE

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30.5 mm

Height : 24 mm

Number of splines : 21

Fixation	COTE ROUE	EC051
Sealing kit	COTE ROUE	5002
Sealing kit	COTE BOITE	6199
CV joint	COTE ROUE	JR101
CV joint	COTE BOITE	CBMR11GT
Tripod joint	COTE BOITE	TRIC05

Equivalence to manufacturer references

RENAULT : 391016376R
RENAULT : 391016776R
RENAULT : 8201150981
