Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

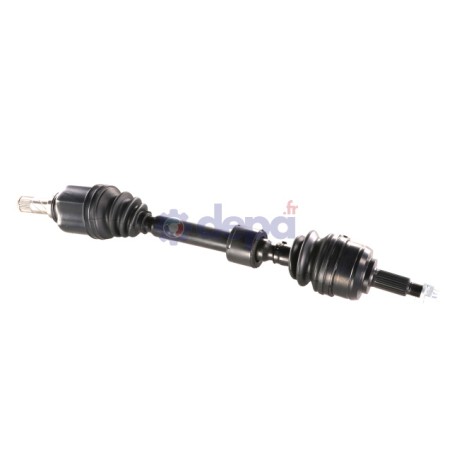

RENAULT MEGANE IV LEFT-SIDE

Name: RENAULT MEGANE IV LEFT-SIDE
Brand: Depa
SKU: 3103750
Price: 343.48 EUR
Availability: OutOfStock

Ref : 3103750

Matching vehicles :

MEGANE 4

Family :TR

Height : 22 mm

Compressed length : 685 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 28 mm

Housing diameter : 70 mm

Length of the gearbox output without seal seat : 65 mm

Number of external splines : 27

Number of splines on inner race : 23

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Diamètre du bol : 82 mm

Shoulder diameter : 51 mm

Nombre de cannelures extérieures : 25

Nombre de cannelures sur la noix : 23

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 21 mm

Beads thickness : 15 mm

Length : 86 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 34 mm

Height : 26.5 mm

Number of splines : 23

FIXATION	COTE ROUE	EC051
JOINT HOMO Echange	COTE ROUE	JR11
JOINT HOMO Echange	COTE BOITE	CBMR351GT
KITS ETANCHEITE TR neuf	COTE ROUE	5016
KITS ETANCHEITE TR neuf	COTE BOITE	6061
TRIAXE	COTE BOITE	TRIF55

Equivalence to manufacturer references

RENAULT : 391016905R
RENAULT : 391019110R
