Catalog

Search by vehicle

Category :

Transmission

Return

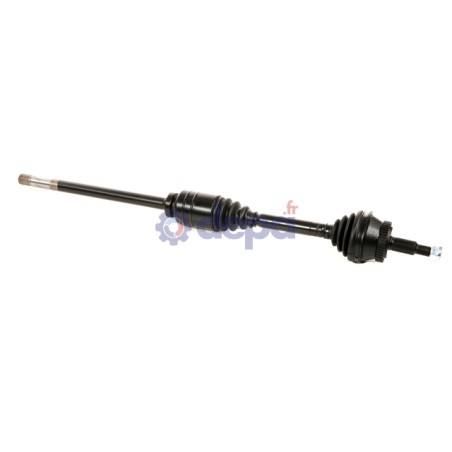

RENAULT/AVANTIME RIGHT-SIDE

Name: RENAULT/AVANTIME RIGHT-SIDE
Brand: Depa
SKU: 3204325
Price: 170.08 EUR
Availability: InStock

Ref : 3204325

Matching vehicles :

ESPACE 3 - AVANTIME

Family :TR

ABS on the vehicle : Yes

Length of the shaft (including bearing unit) : 450 mm

Compressed length : 1010 mm

COTE ROUE

Type and position (snap ring/circlip) : Internal snap ring

Number of external splines : 27

Housing diameter : 98 mm

Number of splines on inner race : 27

Diamètre des cannelures extérieures : 29.5 mm

Shoulder diameter : 64 mm

COTE BOITE

Length of the gearbox output without seal seat : 72 mm

Nombre de cannelures extérieures : 39

Length of the shaft (including bearing unit) : 450 mm

Seal seat diameter : 30 mm

Outer spline diameter : 30 mm

Sealing kit	COTE ROUE	T3030
	COTE ROUE	5026
	COTE BOITE	6050
CV joint	COTE ROUE	JR4325
CV joint	COTE BOITE	PALCBMR4325D
FIXATION	COTE ROUE	EC011
TRIAXE	COTE BOITE	TRIR95
COURONNE ABS		COU093
ROULEMENT		RLT018

Equivalence to manufacturer references

RENAULT : 8200169307
RENAULT : 8200169302
RENAULT : 7701472852
