Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

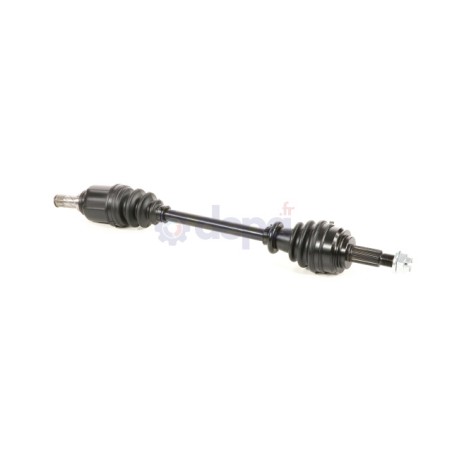

RENAULT KANGOO II DCI LEFT-SIDE

Name: RENAULT KANGOO II DCI LEFT-SIDE
Brand: Depa
SKU: 3208550
Price: 185.22 EUR
Availability: InStock

Ref : 3208550

Matching vehicles :

KANGOO 2

Family :TR

Height : 25 mm

Compressed length : 670 mm

Non-compressed length : 700 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 27 mm

Housing diameter : 66.5 mm

Length of the gearbox output without seal seat : 63 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25 mm

Diamètre du bol : 79 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 23

Number of splines on inner race : 22

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 60 mm

Diameter (little) : 19 mm

Beads thickness : 14 mm

Length : 84 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 32 mm

Height : 23 mm

Number of splines : 22

KITS ETANCHEITE TR neuf	COTE ROUE	5017
		T3081
		T3113
		5016
	COTE BOITE	6061
	COTE BOITE	6108
JOINT HOMO Echange	COTE ROUE	JDAC30
JOINT HOMO Echange	COTE ROUE	JR85
FIXATION	COTE ROUE	EC011
TRIAXE	COTE BOITE	TRIC05
TRIAXE	COTE BOITE	TRIP06

Equivalence to manufacturer references

RENAULT : 391012403R
RENAULT : 391017096R
RENAULT : 391017569R
