Catalog

Search by vehicle

Category :

Transmission

Return

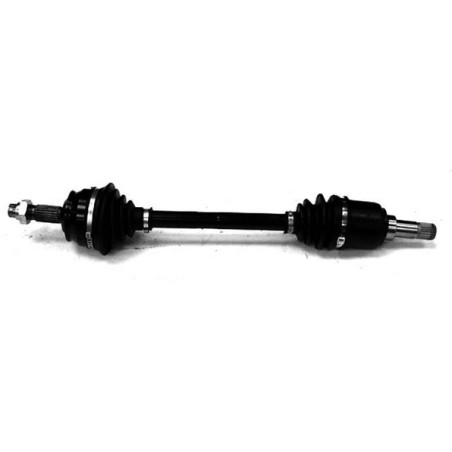

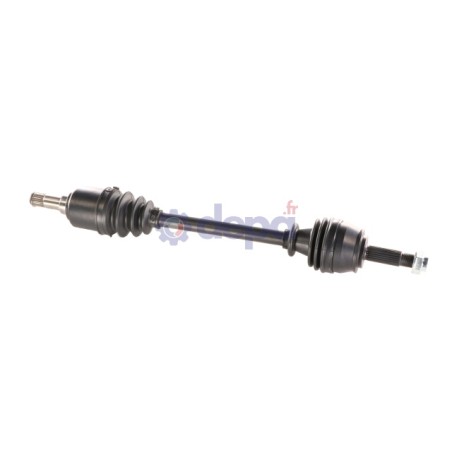

FIAT DOBLO G

Name: FIAT DOBLO G
Brand: Depa
SKU: 3260802
Price: 193.3 EUR
Availability: InStock

Ref : 3260802

Matching vehicles :

DOBLO

Family :TR

ABS on the vehicle : Yes

Compressed length : 637 mm

COTE ROUE

Shoulder diameter : 51 mm

Number of splines on inner race : 20

Type and position (snap ring/circlip) : Centered snap ring

Outer spline diameter : 24 mm

Nombre de cannelures extérieures : 22

Diamètre du bol : 80 mm

COTE BOITE

Housing diameter : 71 mm

Length of the gearbox output without seal seat : 61 mm

Seal seat diameter : 36 mm

Number of external splines : 22

Diamètre des cannelures extérieures : 24 mm

Sealing kit	COTE ROUE	T3009
	COTE ROUE	5017
	COTE BOITE	6080
	COTE BOITE	6020
CV joint	COTE ROUE	JF10
CV joint	COTE BOITE	CBMF38
FIXATION	COTE ROUE	EC020
TRIAXE	COTE BOITE	TRIF38

Equivalence to manufacturer references

FIAT : 51757652
FIAT : 46308198
FIAT : 46307777
