Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

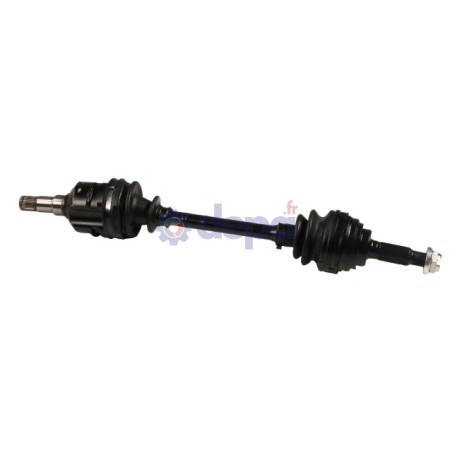

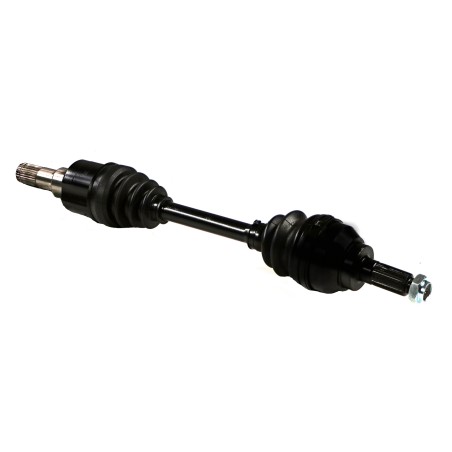

SUZUKI SX4 I LEFT-SIDE

Name: SUZUKI SX4 I LEFT-SIDE
Brand: Depa
SKU: 3437350
Price: 189.38 EUR
Availability: InStock

Ref : 3437350

Matching vehicles :

SX4 I

Family :TR

Height : 20 mm

Compressed length : 600 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 42 mm

Outer spline diameter : 29 mm

Housing diameter : 71 mm

Length of the gearbox output without seal seat : 70 mm

Number of external splines : 28

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28.9 mm

Diamètre du bol : 88 mm

Shoulder diameter : 58 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 35

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 10.5 mm

Length : 90 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 37.5 mm

Outer diameter : 64.34 mm

Height : 26.6 mm

Number of splines : 33

KITS ETANCHEITE TR neuf	COTE ROUE	5016
	COTE ROUE	5005
	COTE BOITE	6082
JOINT HOMO Echange	COTE ROUE	JF31
JOINT HOMO Echange	COTE BOITE	CBMS73GT
FIXATION	COTE ROUE	EC020
TRIAXE	COTE BOITE	TRIR13

Equivalence to manufacturer references

SUZUKI : 44102-79J70-000
