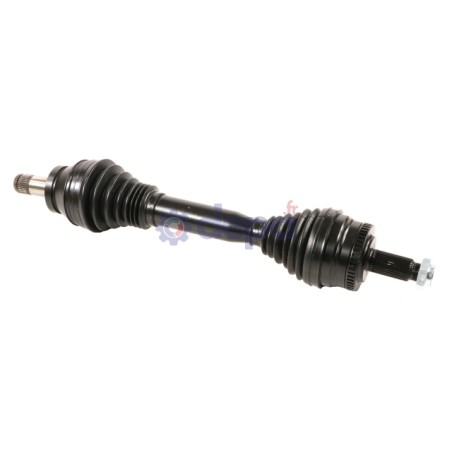

LAND ROVER AUTOMATIC TRANSMISSION FRONT LEFT-SIDE

Name: LAND ROVER AUTOMATIC TRANSMISSION FRONT LEFT-SIDE
Brand: Depa
SKU: 3461650
Price: 294.2 EUR
Availability: OutOfStock

Ref : 3461650

Matching vehicles :

RANGE ROVER III

Family :TR

Compressed length : 625 mm

ABS on the vehicle : Yes

Thread pitch type : 27X150

Nut type : Washer

COURONNE ABS COTE ROUE

Outer diameter : 88 mm

Inner diameter : 85 mm

Width : 14 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 44 mm

Outer spline diameter : 33 mm

Length of the gearbox output without seal seat : 67 mm

Number of external splines : 30

Number of splines on inner race : 29

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 33 mm

Housing diameter : 106 mm

Shoulder diameter : 68 mm

Nombre de cannelures extérieures : 30

Nombre de cannelures sur la noix : 29

Observations : Threading Ø27mm/Spline length on shoulder 58mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 104 mm

Diameter (little) : 47 mm

Length : 125 mm

Type of material : Thermoplastic

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

FIXATION	COTE ROUE	EC032
JOINT HOMO Echange	COTE ROUE	JLR16
JOINT HOMO Echange	COTE BOITE	CBMLR16G
KITS ETANCHEITE TR neuf	COTE ROUE	5036
KITS ETANCHEITE TR neuf	COTE BOITE	T5043

Equivalence to manufacturer references

LAND ROVER : 3H423N128DB
LAND ROVER : IED000071
LAND ROVER : IED000072
LAND ROVER : IED500030
LAND ROVER : IED500031
LAND ROVER : IED500032
LAND ROVER : IED500120
LAND ROVER : TDB000510
