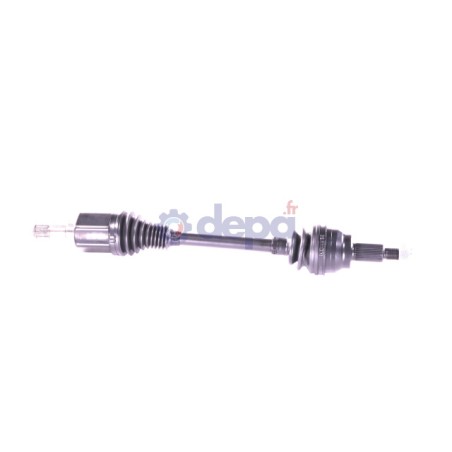

LANDE ROVER RANGE R VELAR AUTOMATIC TRANSMISSION FRONT LEFT-SIDE

Name: LANDE ROVER RANGE R VELAR AUTOMATIC TRANSMISSION FRONT LEFT-SIDE
Brand: Depa
SKU: 3462270
Price: 316.81 EUR
Availability: OutOfStock

Ref : 3462270

Matching vehicles :

RANGE ROVER VELAR

Family :TR

Height : 23 mm

Compressed length : 670 mm

ABS on the vehicle : Yes

Thread pitch type : 24X200

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 39 mm

Outer spline diameter : 29 mm

Housing diameter : 68 mm

Length of the gearbox output without seal seat : 68 mm

Number of external splines : 28

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 33.7 mm

Diamètre du bol : 84.5 mm

Shoulder diameter : 65.5 mm

Nombre de cannelures extérieures : 31

Number of splines on inner race : 24

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 25 mm

Length : 124 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39.9 mm

Height : 20 mm

Number of splines : 23

KITS ETANCHEITE TR neuf	COTE ROUE	5016
KITS ETANCHEITE TR neuf	COTE BOITE	T5016
FIXATION	COTE ROUE	EC018
JOINT HOMO Echange	COTE ROUE	JLR2260
JOINT HOMO Echange	COTE BOITE	CBMLR2270GT

Equivalence to manufacturer references

LAND ROVER : LR092740
