Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

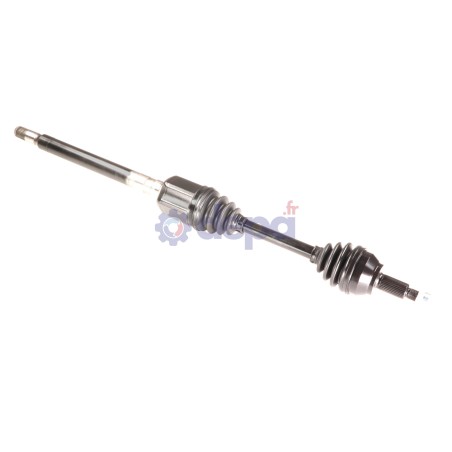

LAND ROVER RANGE SPORT II FRONT RIGHT-SIDE

Name: LAND ROVER RANGE SPORT II FRONT RIGHT-SIDE
Brand: Depa
SKU: 3462760
Price: 302.77 EUR
Availability: OutOfStock

Ref : 3462760

Matching vehicles :

RANGE ROVER IV - RANGE ROVER SPORT II

Family :TR

Height : 23 mm

Compressed length : 1027 mm

ABS on the vehicle : Yes

Thread pitch type : 24X200

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Outer spline diameter : 31.5 mm

Housing diameter : 80 mm

Length of the shaft (including bearing unit) : 460 mm

Number of external splines : 29

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 33.5 mm

Diamètre du bol : 90 mm

Shoulder diameter : 68 mm

Nombre de cannelures extérieures : 31

Number of splines on inner race : 27

Observations : 8 balls

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 80 mm

Diameter (little) : 28.5 mm

Beads thickness : 12.5 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 46.7 mm

Height : 23 mm

Number of splines : 27

KITS ETANCHEITE TR neuf	COTE ROUE	5020
	COTE ROUE	5026
	COTE BOITE	6182
JOINT HOMO Echange	COTE ROUE	JLR20
JOINT HOMO Echange	COTE BOITE	PALCBMLR27DT
FIXATION	COTE ROUE	EC018
TRIAXE	COTE BOITE	TRIAL11

Equivalence to manufacturer references

LAND ROVER : LR041967
LAND ROVER : LR064635
LAND ROVER : LR161122
