Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

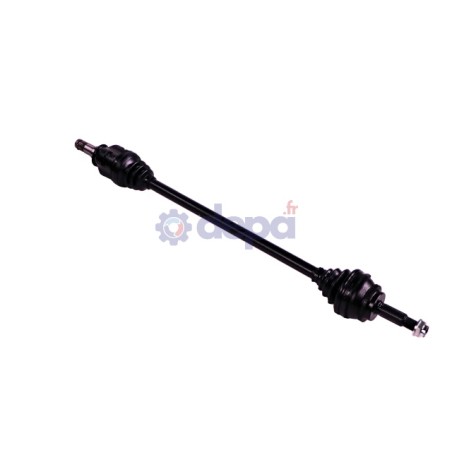

TOYOTA COROLLA II VERSO RIGHT-SIDE

Name: TOYOTA COROLLA II VERSO RIGHT-SIDE
Brand: Depa
SKU: 3489500
Price: 245.01 EUR
Availability: InStock

Ref : 3489500

Matching vehicles :

COROLLA VERSO II

Family :TR

Height : 20 mm

Compressed length : 925 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

COURONNE ABS COTE ROUE

Outer diameter : 80 mm

Inner diameter : 70 mm

Width : 9 mm

Number of teeth : 48

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 35 mm

Outer spline diameter : 26 mm

Length of the gearbox output without seal seat : 63 mm

Number of external splines : 20

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 27 mm

Housing diameter : 90 mm

Shoulder diameter : 63 mm

Nombre de cannelures extérieures : 26

Number of splines on inner race : 25

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 69 mm

Diameter (little) : 22 mm

Beads thickness : 17 mm

Length : 93 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 34 mm

Height : 26.5 mm

Number of splines : 23

JOINT HOMO Echange	COTE ROUE	JT90
JOINT HOMO Echange	COTE BOITE	CBMT13GT
KITS ETANCHEITE TR neuf	COTE ROUE	5020
KITS ETANCHEITE TR neuf	COTE BOITE	6051
FIXATION	COTE ROUE	EC020
TRIAXE	COTE BOITE	TRIF55
COURONNE ABS		COU040

Equivalence to manufacturer references

TOYOTA : 434100F010
