Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

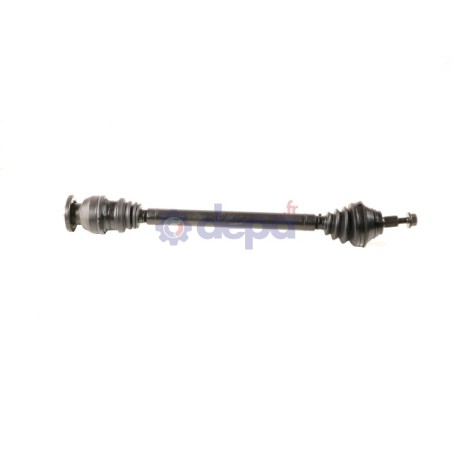

VW TIGUAN TDI FRONT RIGHT-SIDE

Name: VW TIGUAN TDI FRONT RIGHT-SIDE
Brand: Depa
SKU: 3539000
Price: 255.68 EUR
Availability: InStock

Ref : 3539000

Matching vehicles :

TIGUAN

Family :TR

Compressed length : 822 mm

ABS on the vehicle : Yes

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 32 mm

Housing diameter : 98 mm

Number of internal splines : 40

Number of splines on inner race : 28

Presence of a pin : No

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 28.5 mm

Diamètre du bol : 98 mm

Shoulder diameter : 59 mm

Number of external splines : 36

Nombre de cannelures sur la noix : 27

Observations : 8 balls

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 21 mm

Beads thickness : 14 mm

Length : 70 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 90 mm

Diamètre (petit) : 24 mm

Longueur : 90 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

KITS ETANCHEITE TR neuf	COTE ROUE	T3047
	COTE ROUE	5026
	COTE BOITE	5002
		6014
		6020
		6085
FIXATION	COTE ROUE	VI003
JOINT HOMO Echange	COTE ROUE	JW011
JOINT HOMO Echange	COTE BOITE	CBFSE90

Equivalence to manufacturer references

VOLKSWAGEN (SVW) : 5N0407764C
VOLKSWAGEN (SVW) : 5N0407764CX
