Catalog

Search by vehicle

Category :

Transmission

Return

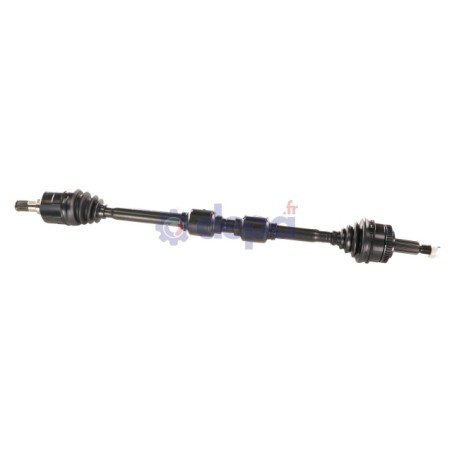

HYUNDAI IX35 D

Name: HYUNDAI IX35 D
Brand: Depa
SKU: 3549700
Price: 356.03 EUR
Availability: OutOfStock

Ref : 3549700

Matching vehicles :

IX35 - SPORTAGE III

Family :TR

ABS on the vehicle : Yes

Compressed length : 985 mm

COTE ROUE

Type and position (snap ring/circlip) : Centered snap ring

Housing diameter : 88 mm

Outer spline diameter : 31 mm

Shoulder diameter : 65 mm

Observations : Spline length 55mm

Number of splines on inner race : 25

Nombre de cannelures extérieures : 30

COTE BOITE

Seal seat diameter : 41 mm

Diamètre du bol : 76 mm

Number of external splines : 27

Diamètre des cannelures extérieures : 28 mm

Length of the gearbox output without seal seat : 60 mm

CV joint	COTE ROUE	JK64
CV joint	COTE BOITE	CBMK22GT
Sealing kit	COTE ROUE	5005
Sealing kit	COTE BOITE	6287
FIXATION	COTE ROUE	EC015
FIXATION		EC042
TRIAXE	COTE BOITE	TRIK43
COURONNE ABS		COU110

Equivalence to manufacturer references

HYUNDAI : 495012Y930
KIA : 495012Y930SJ
