Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

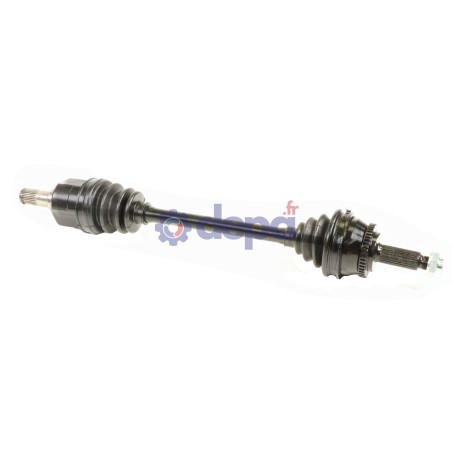

KIA SOUL I LEFT-SIDE

Name: KIA SOUL I LEFT-SIDE
Brand: Depa
SKU: 3587650
Price: 319.55 EUR
Availability: OutOfStock

Ref : 3587650

Matching vehicles :

SOUL I

Family :TR

Height : 15 mm

Compressed length : 670 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Crown

COURONNE ABS COTE ROUE

Outer diameter : 82 mm

Inner diameter : 68 mm

Width : 8 mm

Number of teeth : 46

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 41 mm

Outer spline diameter : 28 mm

Housing diameter : 77 mm

Length of the gearbox output without seal seat : 60 mm

Number of external splines : 27

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28 mm

Diamètre du bol : 88 mm

Shoulder diameter : 60 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 25

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 72 mm

Diameter (little) : 24 mm

Beads thickness : 13 mm

Length : 102 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 36.5 mm

Height : 27 mm

Number of splines : 25

KITS ETANCHEITE TR neuf	COTE ROUE	5005
KITS ETANCHEITE TR neuf	COTE BOITE	6055
FIXATION	COTE ROUE	EC015
FIXATION		EC042
JOINT HOMO Echange	COTE BOITE	CBMHY08GT
COURONNE ABS		COU041

Equivalence to manufacturer references

KIA : 495002K820
KIA : 495002K820SJ
