Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

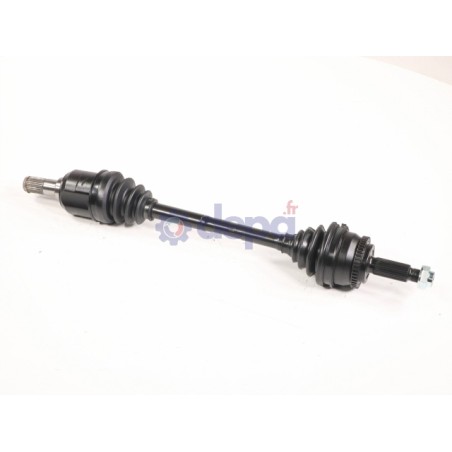

KIA CEED II LEFT-SIDE

Name: KIA CEED II LEFT-SIDE
Brand: Depa
SKU: 3587750
Price: 327.65 EUR
Availability: OutOfStock

Ref : 3587750

Matching vehicles :

CEE'D II - PRO CEE'D II

Family :TR

Height : 20 mm

Compressed length : 670 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Flange nut

COURONNE ABS COTE ROUE

Outer diameter : 82 mm

Inner diameter : 68 mm

Width : 8 mm

Number of teeth : 46

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 41 mm

Outer spline diameter : 28 mm

Housing diameter : 73 mm

Length of the gearbox output without seal seat : 61 mm

Number of external splines : 27

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28 mm

Diamètre du bol : 84 mm

Shoulder diameter : 60 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 24

Observations : Threading length 28mm Ø22mm/Spline length on shoulder 56mm

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 10.5 mm

Length : 90 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 35 mm

Height : 27 mm

Number of splines : 24

JOINT HOMO Echange	COTE ROUE	JK75
JOINT HOMO Echange	COTE BOITE	CBMK74DT
KITS ETANCHEITE TR neuf	COTE ROUE	5005
KITS ETANCHEITE TR neuf	COTE BOITE	6082
FIXATION	COTE ROUE	EC020
COURONNE ABS		COU041

Equivalence to manufacturer references

KIA : 49500A2200
