Catalog

Search by vehicle

Category :

TRANSMISSION échange standard

Return

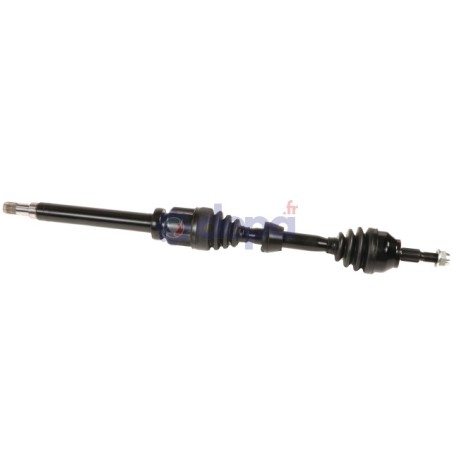

FORD C-MAX II RIGHT-SIDE

Name: FORD C-MAX II RIGHT-SIDE
Brand: Depa
SKU: 3651300
Price: 235.17 EUR
Availability: InStock

Ref : 3651300

Matching vehicles :

FOCUS III - GRAND C-MAX II - C-MAX II - FOCUS III TURNIER

Family :TR

Height : 26 mm

Compressed length : 980 mm

Length of the shaft (including bearing unit) : 390 mm

ABS on the vehicle : Yes

Thread pitch type : 22X150

Nut type : Lock

JOINT HOMOCINETIQUE

Seal seat diameter : 40 mm

Outer spline diameter : 28.5 mm

Housing diameter : 77 mm

Length of the shaft (including bearing unit) : 390 mm

Length of the gearbox output without seal seat : 68 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 29.5 mm

Diamètre du bol : 91 mm

Shoulder diameter : 63 mm

Nombre de cannelures extérieures : 27

Number of splines on inner race : 26

Observations : Threading length 40mm Ø22mm

Type and position (snap ring/circlip) : Centered snap ring

ROULEMENT COTE BOITE

Outer diameter : 75 mm

Inner diameter : 45 mm

Width : 19 mm

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 25 mm

Beads thickness : 18.5 mm

Length : 100 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 88 mm

Diamètre (petit) : 22 mm

Longueur : 88 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 38 mm

Height : 29 mm

Number of splines : 26

KITS ETANCHEITE TR neuf	COTE ROUE	5020
	COTE BOITE	6043
	COTE BOITE	6043
FIXATION	COTE ROUE	EC019
JOINT HOMO Echange	COTE ROUE	JFO13
JOINT HOMO Echange		PALCBMFO2720DT
TRIAXE	COTE BOITE	TRIFO35
TRIAXE	COTE BOITE	TRIFO35
ROULEMENT	COTE BOITE	RLT033
ROULEMENT		RLT033

Equivalence to manufacturer references

FORD : 1712269
FORD : 1809715
FORD : 2286713
FORD : RMAV613B436D1D
