Catalog

Search by vehicle

Category :

Transmission

Return

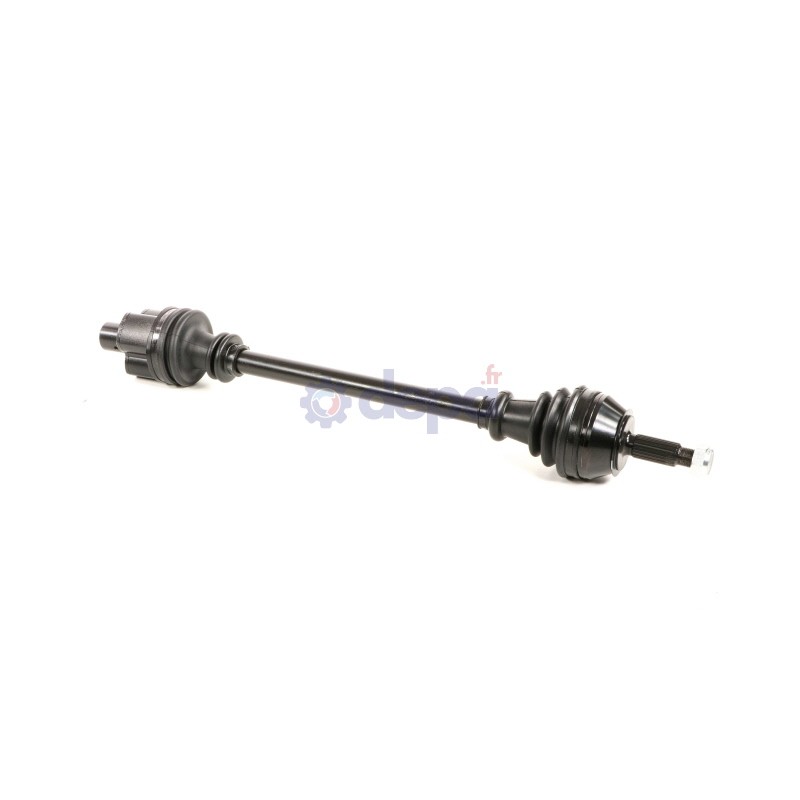

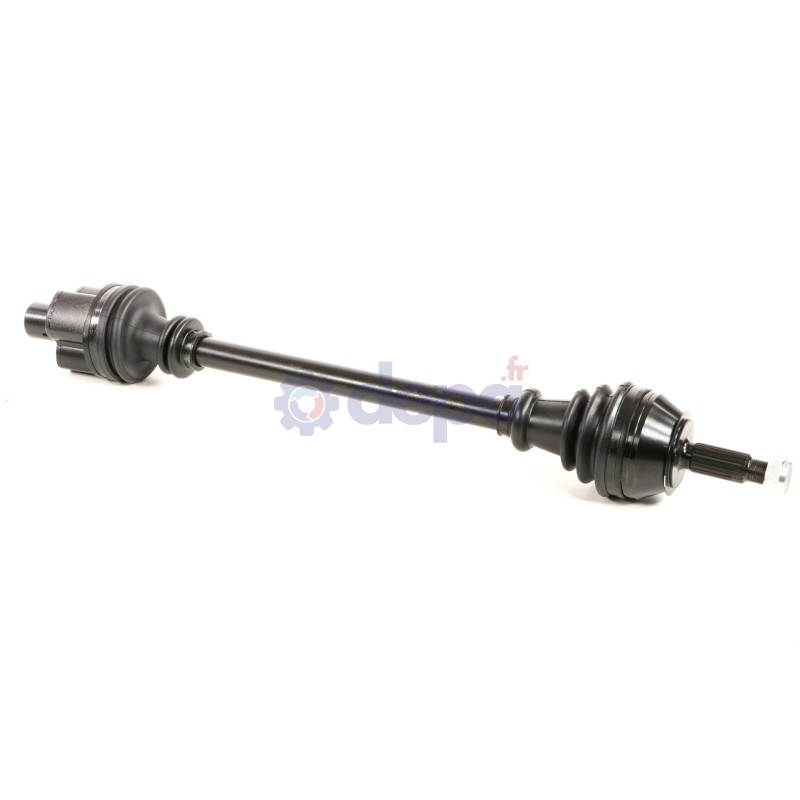

RENAULT ESPACE

Name: RENAULT ESPACE
Brand: Depa
SKU: 3027301
Price: 107.87 EUR
Availability: InStock

Ref : 3027301

Matching vehicles :

ESPACE 2

Family :TR

Diameter : 3 mm

Height : 16.5 mm

Length : 40 mm

Compressed length : 720 mm

ABS on the vehicle : No

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Minor diameter of the splines : 23.5 mm

Housing diameter : 88 mm

Number of internal splines : 23

Presence of a pin : Yes

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 25 mm

Diamètre du bol : 90 mm

Shoulder diameter : 56 mm

Number of external splines : 23

Number of splines on inner race : 25

Type and position (snap ring/circlip) : External snap ring

SOUFFLET COTE BOITE

Diameter (big) : 84 mm

Diameter (little) : 21 mm

Length : 124 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 83 mm

Diamètre (petit) : 22 mm

Longueur : 79 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 37 mm

Height : 29 mm

Number of splines : 25

Sealing kit	COTE ROUE	T3025
	COTE ROUE	5005
	COTE BOITE	5012
CV joint	COTE ROUE	JR76
	COTE BOITE	CBFR97
	COTE BOITE	CBFR76
Fixation	COTE ROUE	EC005
Tripod joint	COTE BOITE	TRIR95
Tripod joint	COTE BOITE	TRIR25
Split pin		GOUP002

Equivalence to manufacturer references

RENAULT : 7700104748
RENAULT : 7701349689
RENAULT : 7701349940
RENAULT : 7701352024
