Catalog

Search by vehicle

Category :

Transmission

Return

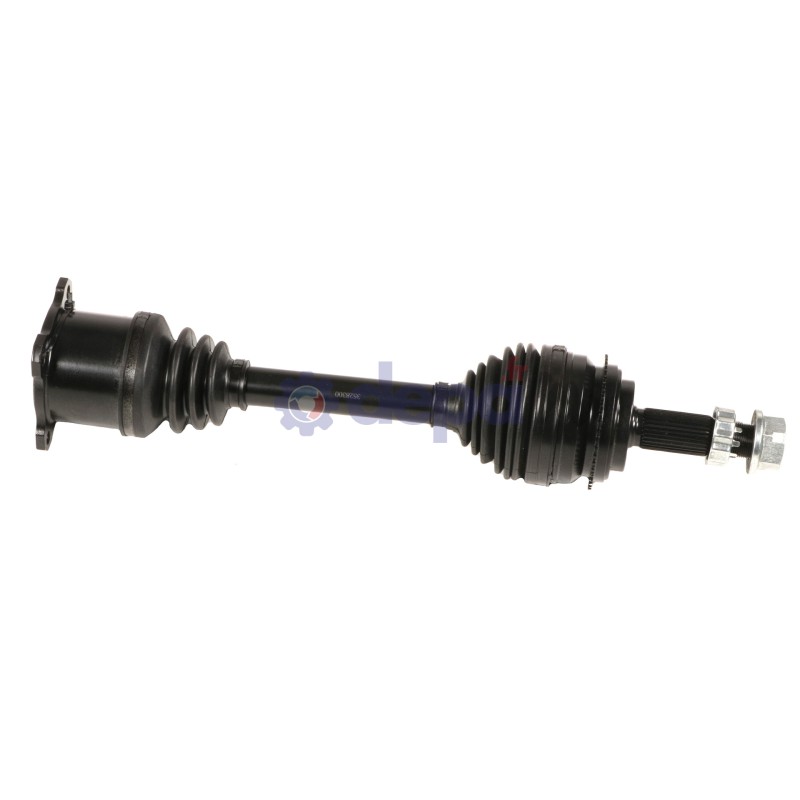

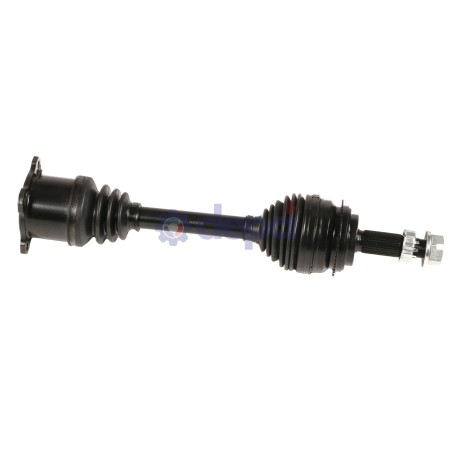

PAJERO 3,2 160HP WITH ABS RIGHT-SIDE

Name: PAJERO 3,2 160HP WITH ABS RIGHT-SIDE
Brand: Depa
SKU: 3528100
Price: 381.45 EUR
Availability: OutOfStock

Ref : 3528100

Matching vehicles :

PAJERO III

Family :TR

Height : 23 mm

Compressed length : 522 mm

ABS on the vehicle : Yes

Thread pitch type : 26X150

Nut type : Flange nut

COURONNE ABS COTE ROUE

Outer diameter : 102 mm

Inner diameter : 89 mm

Width : 8 mm

Number of teeth : 50

JOINT HOMOCINETIQUE COTE BOITE

Mounting hole diameter : 10 mm

Outer diameter (gearbox side) : 135 mm

Number of internal splines : 34

Number of mounting points : 4

JOINT HOMOCINETIQUE COTE ROUE

Outer spline diameter : 31 mm

Housing diameter : 102 mm

Shoulder diameter : 66 mm

Number of external splines : 30

Number of splines on inner race : 36

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 88 mm

Diameter (little) : 22 mm

Length : 88 mm

Number of grooves : 1

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 94 mm

Diamètre (petit) : 29 mm

Longueur : 149 mm

Nombre de gorges : 1

Type de matière : NÉOPRÈNE

CV joint	COTE ROUE	JMI81
	COTE ROUE	JMI81
	COTE BOITE	CBEMI81D
Sealing kit	COTE ROUE	5036
	COTE ROUE	5036
	COTE BOITE	5020
	COTE BOITE	5020
Fixation	COTE ROUE	EC044
Fixation		EC044
ABS ring		COU039

Equivalence to manufacturer references

MITSUBISHI : MR410665
