Catalog

Search by vehicle

Category :

Hydraulic power steering rack

Return

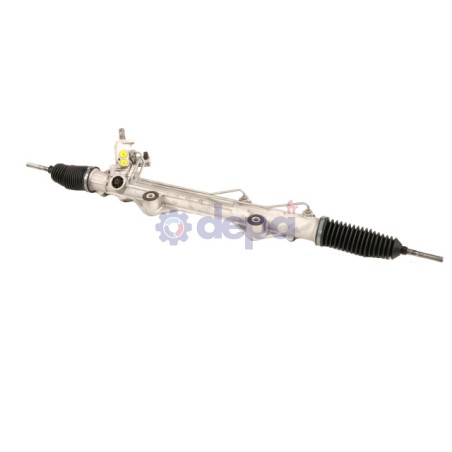

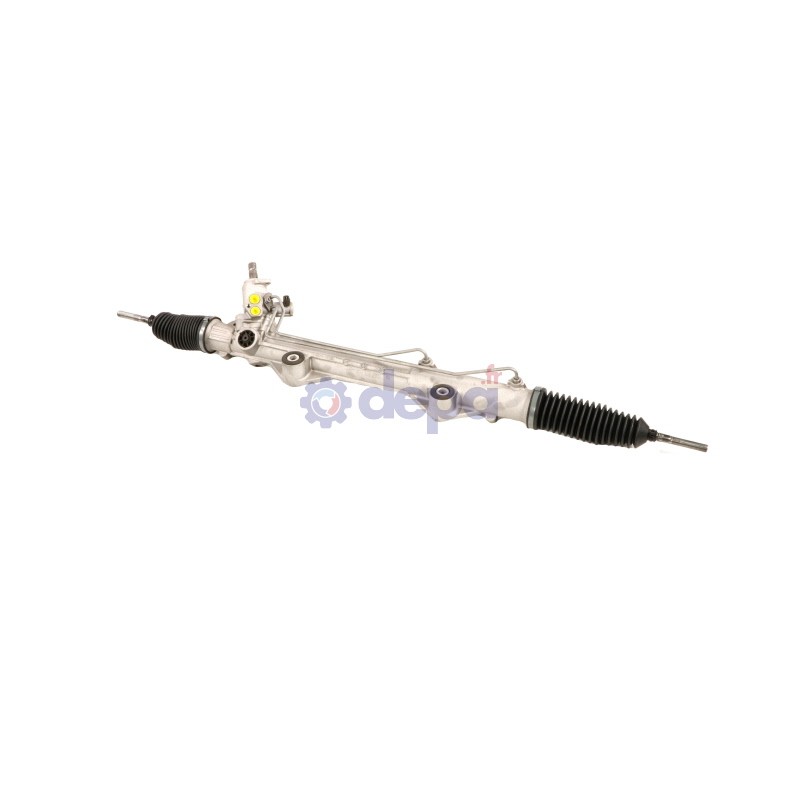

JAGUAR S TYPE

Name: JAGUAR S TYPE
Brand: Depa
SKU: A006R
Price: 680.83 EUR
Availability: OutOfStock

Ref : A006R

Family :CA

Mounting hole diameter : 12 mm

Manufacturer : ZF

Tie rod thread size (rack side) : M16 X 1,5

Tie rod thread size (tie rod end side) : M14 X 1,5

Thread length : 55 mm

Total length : 1140 mm

Number of splines on the pinion : 55

Observations : Provided without sensor

Splined pinion : Yes

Steering wheel position : Left-hand drive

Presence of servotronic : With

Fitting type : Flanged

INSTRUCTION MONTAGE

Lock to lock turns : 2.75 tr

JOINT SPI

Outer diameter : 30 mm

Inner diameter : 28 mm

JOINT TORIQUE

Diamètre extérieur : 46.1 mm

Diamètre intérieur : 47 mm

SEGMENT

Diamètre extérieur : 44.4 mm

Diamètre intérieur : 39.1 mm

SOUFFLET

Diameter (big) : 64 mm

Diameter (little) : 14 mm

Length : 213 mm

Type of material : Thermoplastic

SOUFFLET GAUCHE

Diamètre (grand) : 64 mm

Diamètre (petit) : 14 mm

Longueur : 213 mm

Type de matière : THERMOPLASTIQUE

Boot kit for steering rack	GAUCHE	T4264
Boot kit for steering rack		T4264

Equivalence to manufacturer references

JAGUAR : C2P7680
