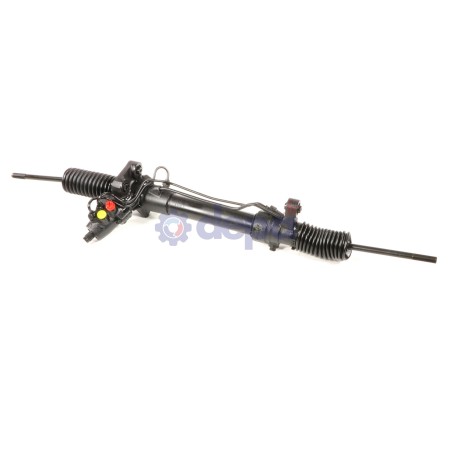

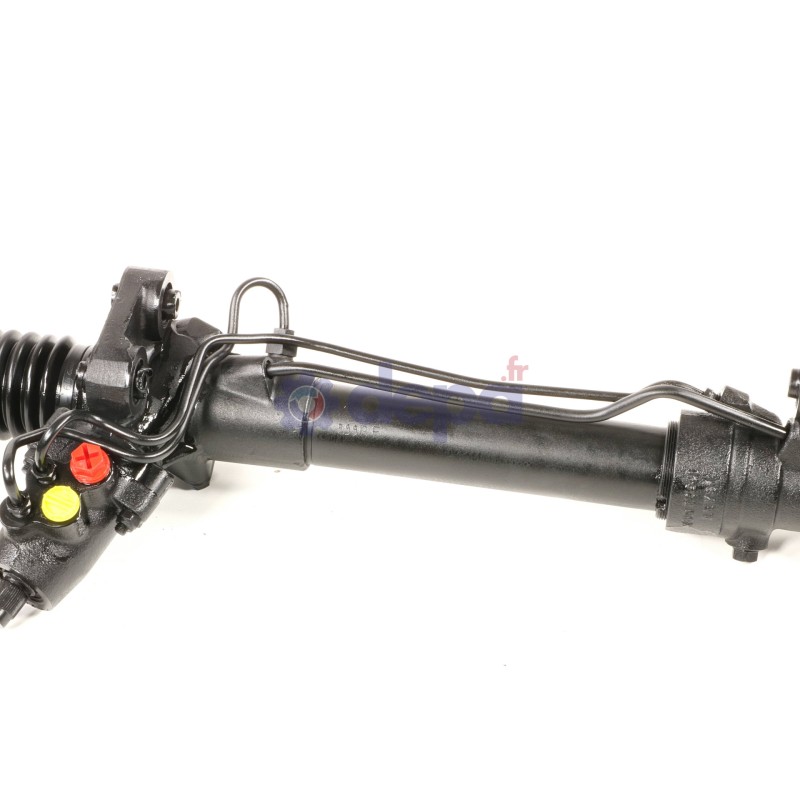

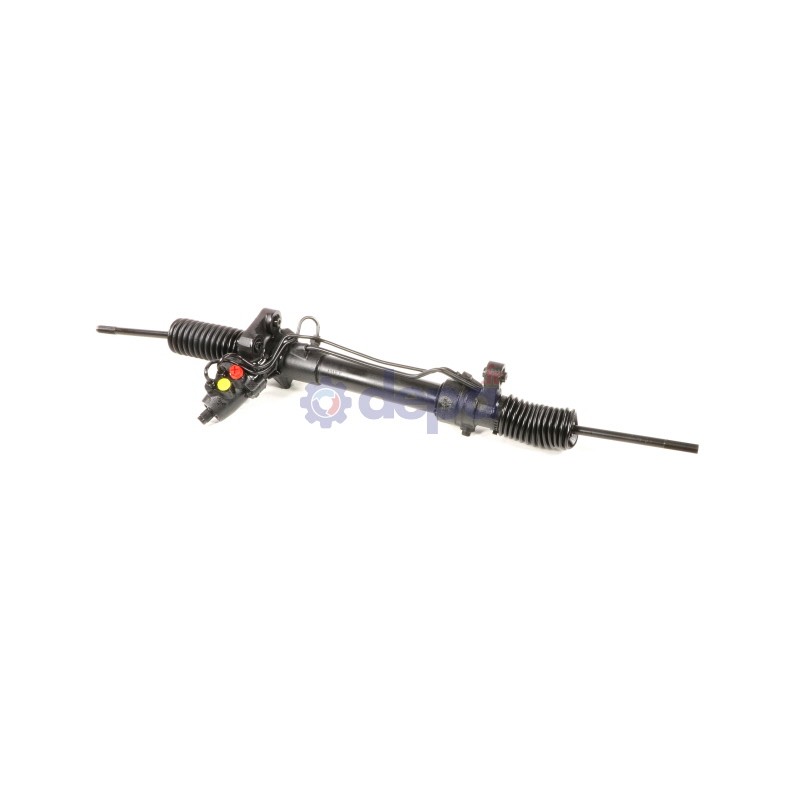

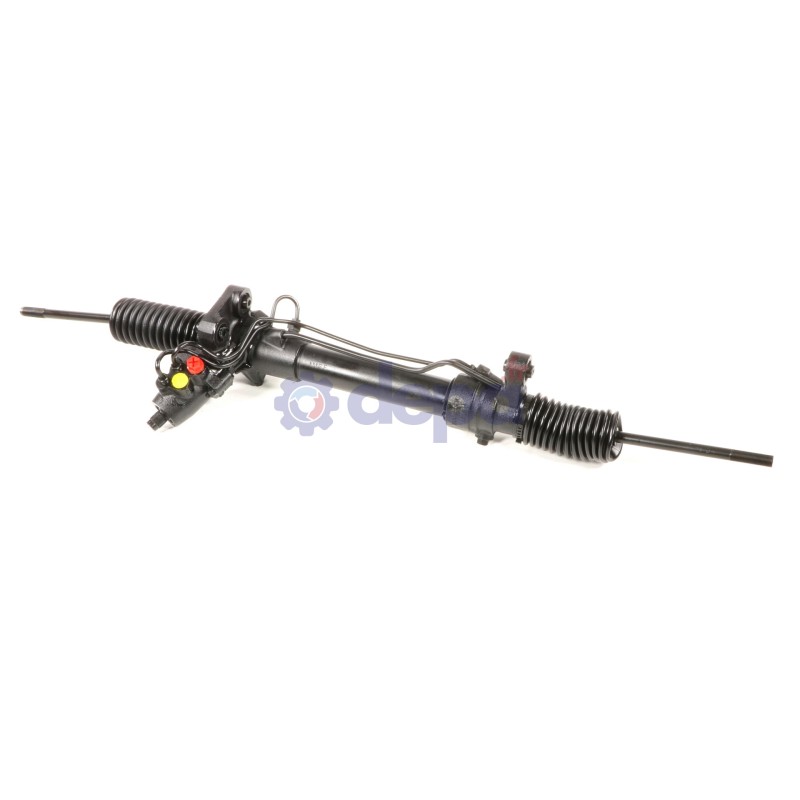

Hydraulic power steering rack

Return

JAGUAR XJ II

Ref : A011

Matching vehicles :

XJ II - XJ I

Family :CA

Mounting hole diameter  : 8 mm

Tie rod thread size (rack side)  : M14 X 1,5

Tie rod thread size (tie rod end side)  : POSITION TYPE

Thread length  : 50 mm

Total length  : 1140 mm

Number of splines on the pinion  : 36

Observations  : RO127134X2

Splined pinion  : Yes

Steering wheel position  : Left-hand drive

Presence of servotronic  : Without

Fitting type  : Screw

INSTRUCTION MONTAGE

Lock to lock turns  : 2.5 tr

JOINT SPI

Outer diameter  : 33 mm

Inner diameter  : 22 mm

JOINT TORIQUE CORPS

Diamètre extérieur  : 45 mm

Diamètre intérieur  : 30 mm

SEGMENT BARREAU

Diamètre extérieur  : 31.5 mm

Diamètre intérieur  : 28 mm

SOUFFLET

Type of material  : NITRILE

Boot kit for steering rack 4009 JAGUAR
