Catalog

Search by vehicle

Category :

Hydraulic power steering rack

Return

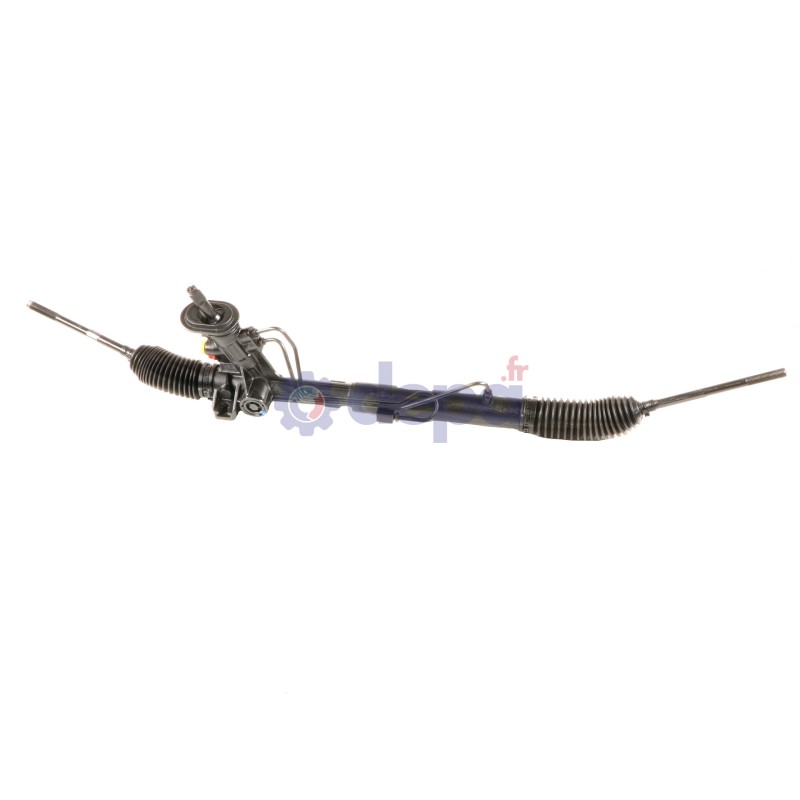

VW CADDY

Name: VW CADDY
Brand: Depa
SKU: A1068
Price: 377.26 EUR
Availability: InStock

Ref : A1068

Matching vehicles :

POLO II - AROSA - LUPO - POLO III

Family :CA

Mounting hole diameter : 9 mm

Thread length : 50 mm

Tie rod thread size (rack side) : M16 X 1,5

Steering wheel position : Left-hand drive

Presence of servotronic : Without

Tie rod thread size (tie rod end side) : M14 X 1,5

Manufacturer : TRW

Total length : 1130 mm

Number of splines on the pinion : 18

Observations : Without sensor

Fitting type : Screw

Splined pinion : No

INSTRUCTION MONTAGE

Rack travel : 130.0 mm

Diameter of the rack : 23.00 mm

Rack housing bore diameter : 38.00 mm

Rack to housing distance at full lock : 55 mm

Presence of non-return valve : SANS

Oil flow rate for testing +/-0.5 : 4.20 L/min

Lock to lock turns : 2.80 tr

Boot kit for steering rack		T4248
		T4248

Equivalence to manufacturer references

VOLKSWAGEN : 6N1422061CX
VOLKSWAGEN : 6N1422061EX
SEAT : 6N1422061C
VOLKSWAGEN : 6N1422061E
SEAT : 6N1422061CX
VOLKSWAGEN : 6N1422061C
