Catalog

Search by vehicle

Category :

CREMAILLERE ASSISTEE ECH.

Return

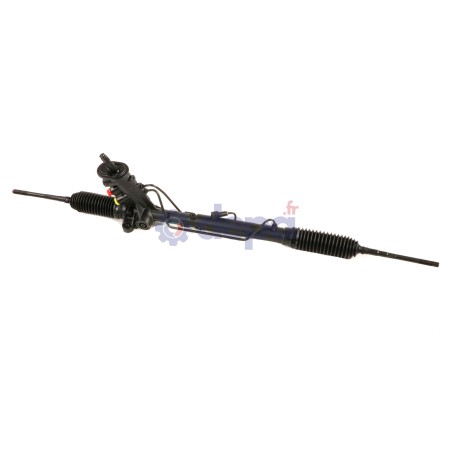

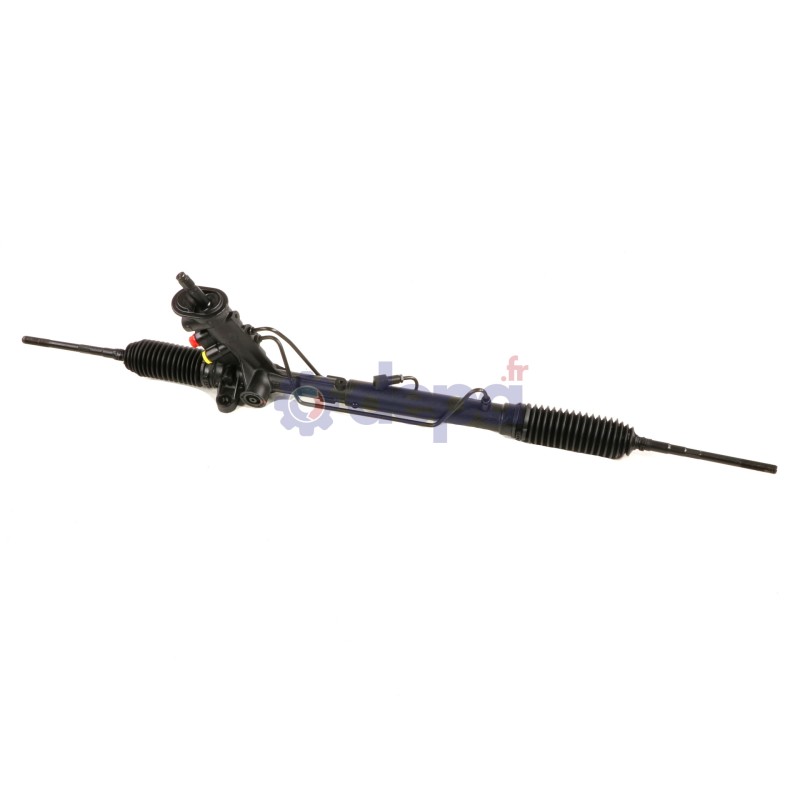

VW POLO/SEAT CODOBA 3 IBIZA 4

Name: VW POLO/SEAT CODOBA 3 IBIZA 4
Brand: Depa
SKU: A1072
Price: 443.65 EUR
Availability: InStock

Ref : A1072

Matching vehicles :

CORDOBA 2 - FABIA - IBIZA III - POLO IV

Family :CA

Mounting hole diameter : 10 mm

Manufacturer : TRW

Manufacturer of the sensor : VALEO

Tie rod thread size (rack side) : M14 X 1,5

Tie rod thread size (tie rod end side) : M14 X 1,5

Thread length : 50 mm

Total length : 1180 mm

Number of splines on the pinion : 22

Observations : For Valeo sensor connected with one wire on the steering rack/Sensor not provided

Splined pinion : Yes

Steering wheel position : Left-hand drive

Presence of servotronic : With

Fitting type : Screw

INSTRUCTION MONTAGE

Lock to lock turns : 2.90 tr

JOINT SPI

Outer diameter : 32.5 mm

Inner diameter : 19.05 mm

JOINT TORIQUE

Diamètre intérieur : 31 mm

ROULEMENT

Outer diameter : 35 mm

Diamètre intérieur : 19 mm

Width : 6.20 mm

SEGMENT

Diamètre extérieur : 36.2 mm

Diamètre intérieur : 32.80 mm

SOUFFLET

Diameter (big) : 45.5 mm

Diameter (little) : 13 mm

Length : 210 mm

Type of material : Thermoplastic

KITS SOUFFLETS Crémaillères		T4248
BIELLETTES		BI57012

Equivalence to manufacturer references

AUDI : 0230080050001
AUDI : 6Q1423051K
AUDI : 6QI423055E
SEAT : 6Q1423051K
SEAT : 6Q1423061MX
SEAT : 6QI423055E
SKODA : 6Q1423051CG
SKODA : 6Q1423051K
SKODA : 6QI423055E
VOLKSWAGEN (SVW) : 6E1423061
VOLKSWAGEN (SVW) : 6Q1423051CE
VOLKSWAGEN (SVW) : 6Q1423051K
VOLKSWAGEN (SVW) : 6Q1423055E
VOLKSWAGEN (SVW) : 6Q1423055G
VOLKSWAGEN (SVW) : 6Q1423061M
VOLKSWAGEN (SVW) : 6Q142306FX
VOLKSWAGEN (SVW) : 6QI423055E
