Catalog

Search by vehicle

Category :

Hydraulic power steering rack

Return

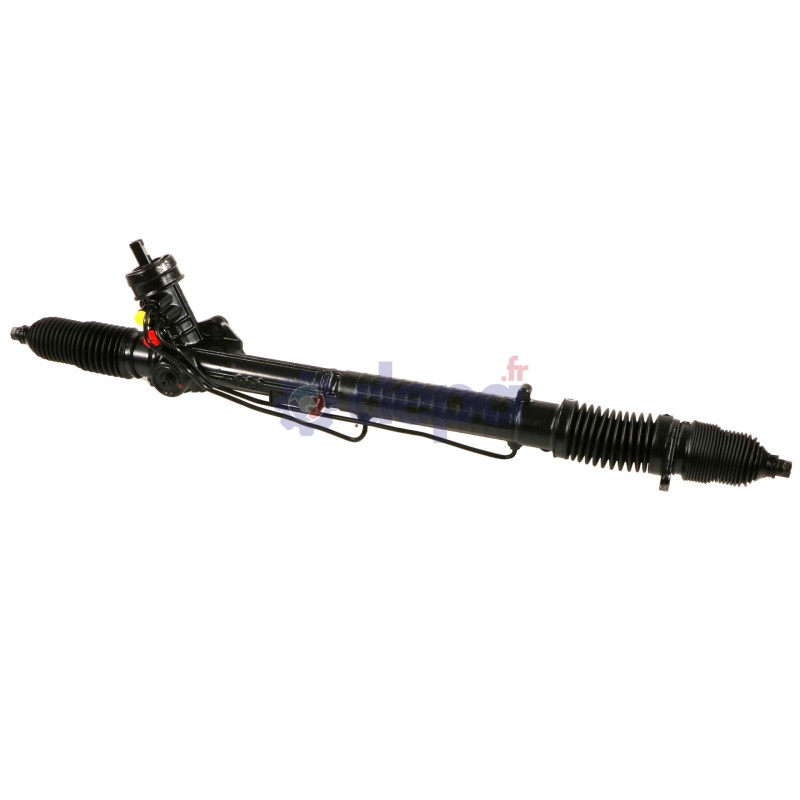

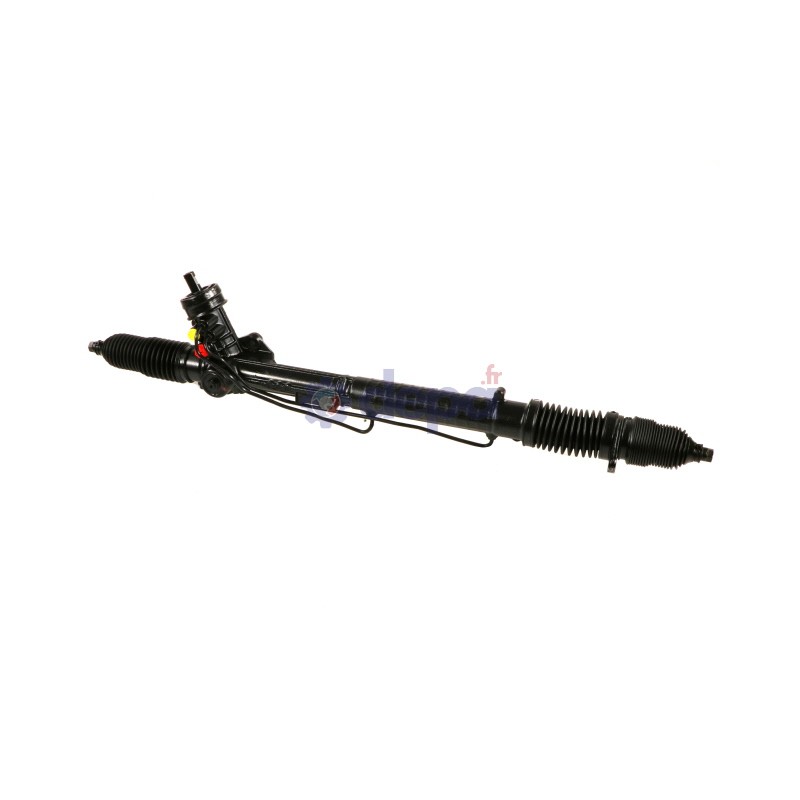

PASSAT

Name: PASSAT
Brand: Depa
SKU: A1077R
Price: 534.13 EUR
Availability: InStock

Ref : A1077R

Family :CA

Observations : With power steering cylinder mounting support

Splined pinion : No

Mounting hole diameter : 10 mm

Total length : 1020 mm

Presence of servotronic : Without

Tie rod thread size (rack side) : M14 X 1,5

Tie rod thread size (tie rod end side) : M16 X 1,5

Fitting type : Screw

Steering wheel position : Left-hand drive

Manufacturer : ZF

INSTRUCTION MONTAGE

Oil flow rate for testing +/-0.5 : 5.40 L/min

Rack to housing distance at full lock : 32 mm

Lock to lock turns : 2.80 tr

Presence of non-return valve : SANS

Rack travel : 160.0 mm

Boot kit for steering rack	GAUCHE	4075
	GAUCHE	T4075
	DROITE	4074
		T4074
Tie rod end	GAUCHE	RO137630
Tie rod end	DROITE	RO137630
Tie rod	GAUCHE	BI37610
Tie rod	DROITE	BI37610

Equivalence to manufacturer references

AUDI : 8D1422052CX
SKODA : 8D1422052SX
VOLKSWAGEN : 8D1422052KX
