Category :

Hydraulic power steering rack

Return

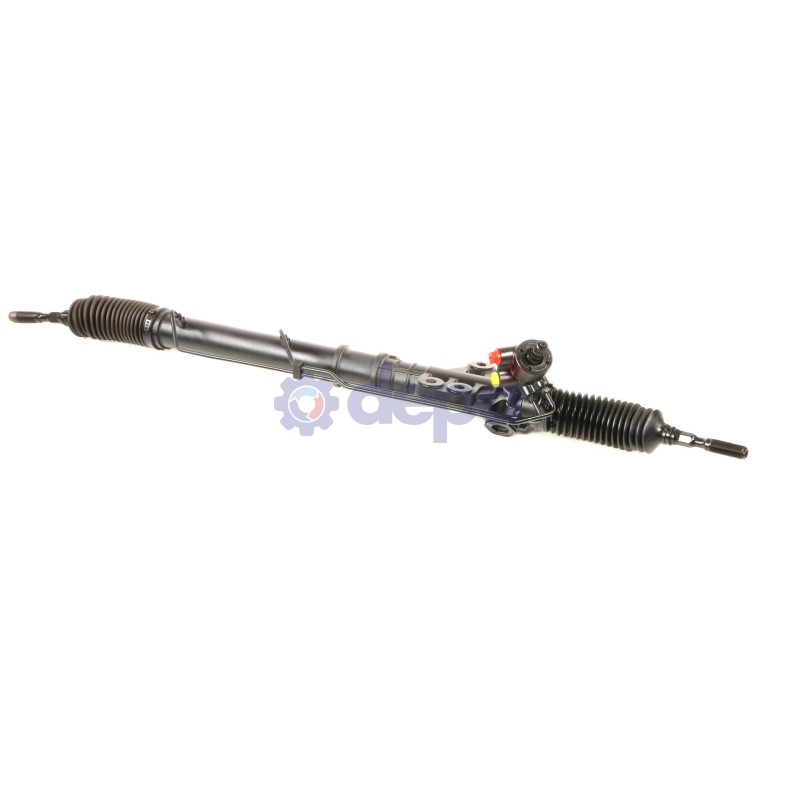

A1182_1.jpg 3D

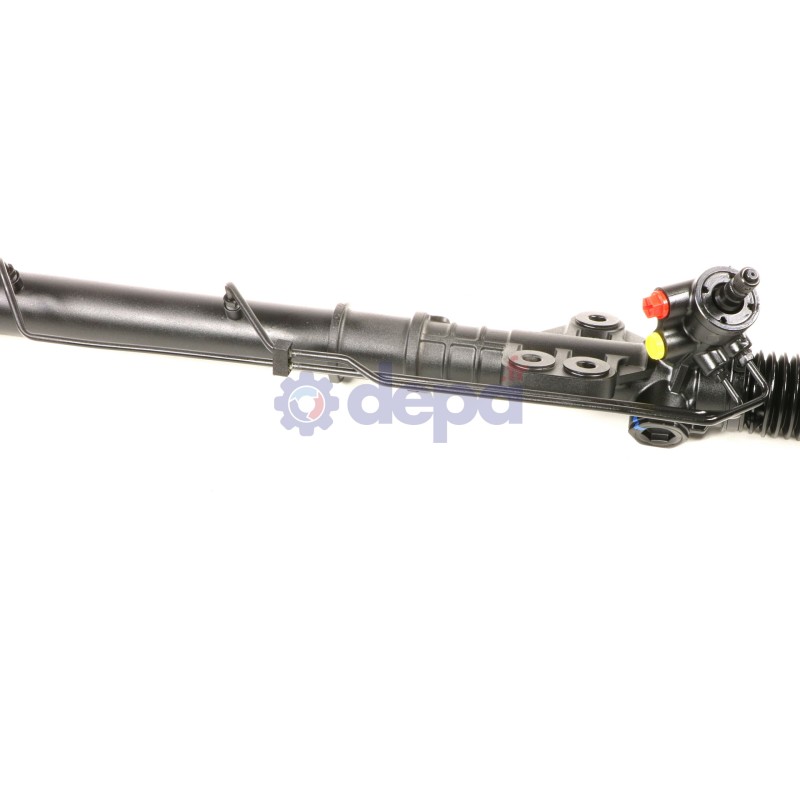

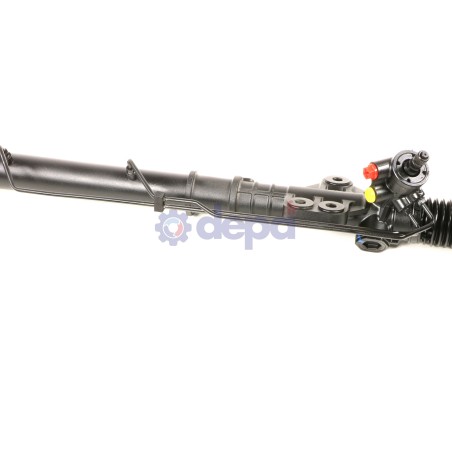

NISSAN CABSTAR II

Ref : A1182

Matching vehicles :

CABSTAR II - NT400 CABSTAR

Family :CA

Tie rod thread size (rack side)  : M14 X 1,5

Tie rod thread size (tie rod end side)  : M12 X 1,5

Mounting hole diameter  : 14 mm

Total length  : 1230 mm

Presence of servotronic  : Without

Fitting type  : Screw

Number of splines on the pinion  : 32

Steering wheel position  : Left-hand drive

Observations  : RO142038*2

Splined pinion  : Yes

INSTRUCTION MONTAGE

Lock to lock turns  : 3.75 tr

Rack travel  : 165.0 mm

Diameter of the rack  : 32.00 mm

Oil flow rate for testing +/-0.5  : 6.98 L/min

Rack housing bore diameter  : 50.20 mm

Boot kit for steering rack GAUCHE T4223 TOYOTA
DROITE T4223 TOYOTA

Equivalence to manufacturer references

  • NISSAN : 49001MD00B

  • NISSAN : 49001MB402
