Catalog

Search by vehicle

Category :

CREMAILLERE ASSISTEE ECH.

Return

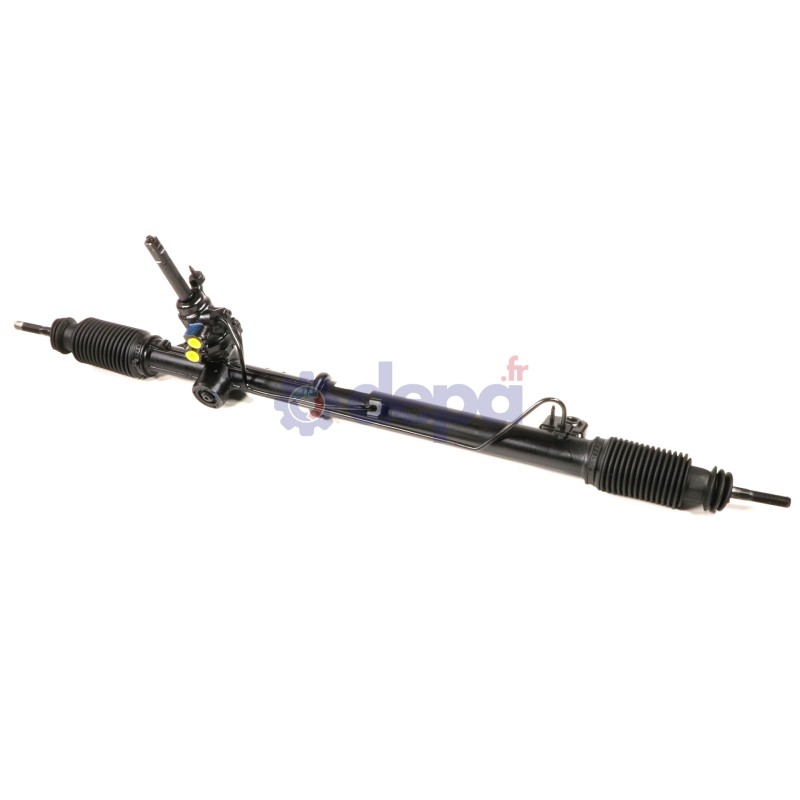

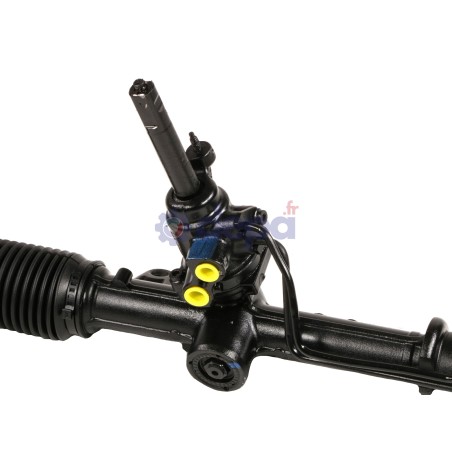

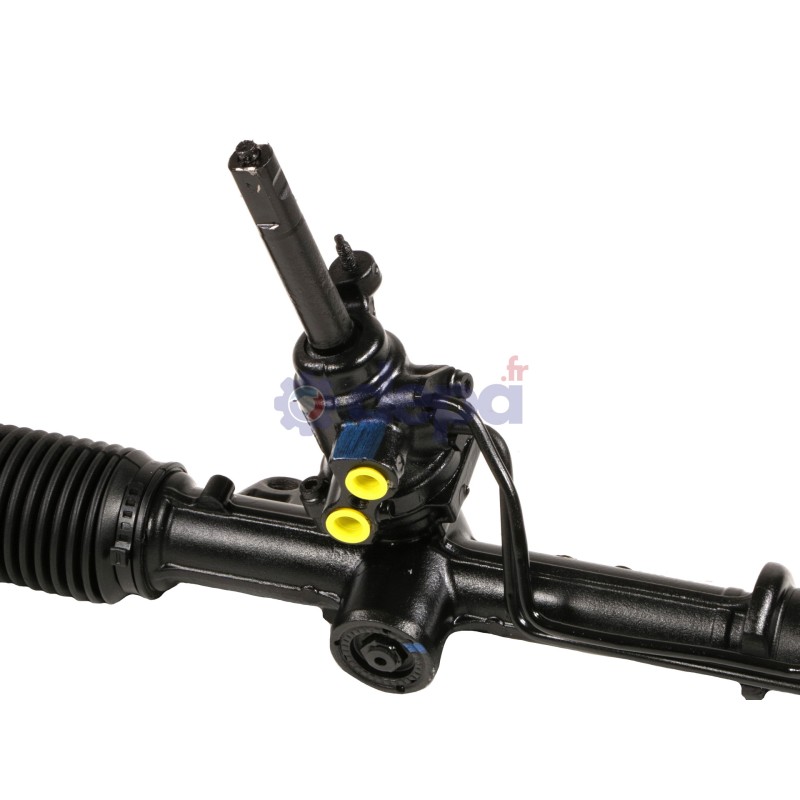

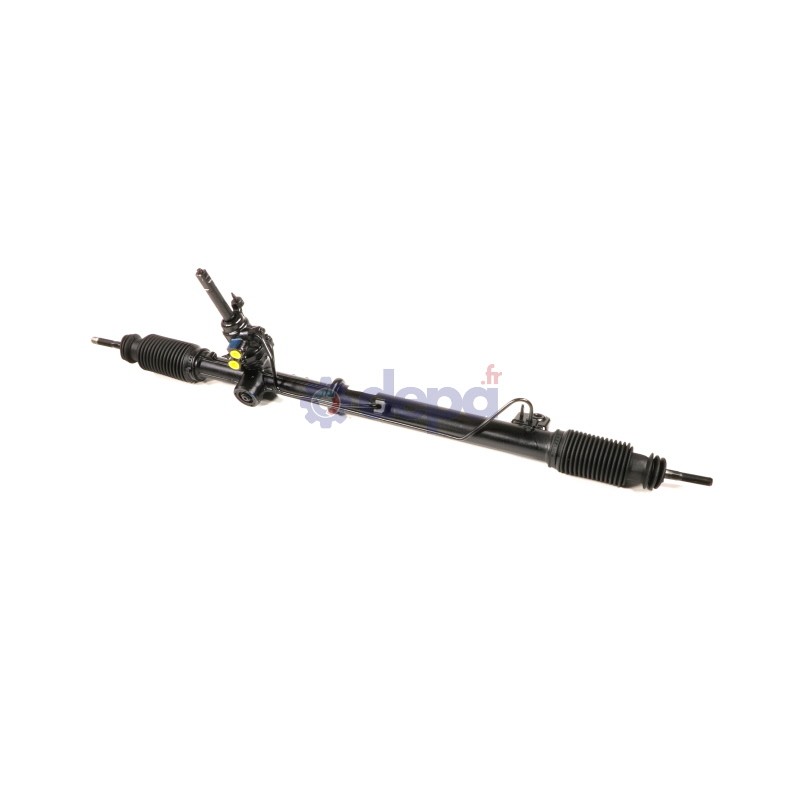

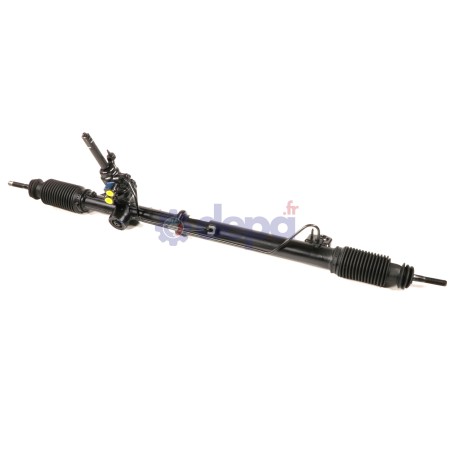

CITROEN C5 II

Name: CITROEN C5 II
Brand: Depa
SKU: A136
Price: 415.48 EUR
Availability: InStock

Ref : A136

Matching vehicles :

C5 II

Family :CA

Mounting hole diameter : 14 mm

Manufacturer : ZF

Tie rod thread size (rack side) : M14 X 1,5

Tie rod thread size (tie rod end side) : M16 X 1,5

Thread length : 45 mm

Total length : 1100 mm

Observations : Blue tie rod shim

Splined pinion : No

Steering wheel position : Left-hand drive

Presence of servotronic : Without

Fitting type : Flanged

INSTRUCTION MONTAGE

Lock to lock turns : 3.75 tr

JOINT SPI

Outer diameter : 30 mm

Inner diameter : 26 mm

JOINT TORIQUE

Diamètre intérieur : 5.41 mm

ROULEMENT

Outer diameter : 47 mm

Diamètre intérieur : 25 mm

Width : 8 mm

SEGMENT

Diamètre extérieur : 42 mm

Diamètre intérieur : 38 mm

SOUFFLET

Diameter (big) : 50 mm

Diameter (little) : 14 mm

Length : 198 mm

Type of material : Thermoplastic

SOUFFLET GAUCHE

Diamètre (grand) : 50 mm

Diamètre (petit) : 14 mm

Longueur : 198 mm

Type de matière : THERMOPLASTIQUE

KITS SOUFFLETS Crémaillères	GAUCHE	T4221
KITS SOUFFLETS Crémaillères		T4221

Equivalence to manufacturer references

CITROËN : 1663665280
CITROËN : 400160
CITROËN : 4001W4
CITROËN : 9801381480
