CREMAILLERE ASSISTEE ECH.
3D
Ref : A163
Matching vehicles :
XANTIAFamily :CA
Total length : 1210 mm
Number of splines on the pinion : 36
Steering wheel position : Left-hand drive
Tie rod thread size (tie rod end side) : M12 X 1,5
Splined pinion : Yes
Mounting hole diameter : 12 mm
Presence of servotronic : Without
Tie rod thread size (rack side) : M14 X 1,5
Manufacturer : ZF
Fitting type : Screw
Observations : Axial Ø 18mm et verin vendu séparément
INSTRUCTION MONTAGE
Rack travel : 180.0 mm
Rack to housing distance at full lock : 50 mm
Lock to lock turns : 3.25 tr
Presence of non-return valve : AVEC
| KITS SOUFFLETS Crémaillères | GAUCHE | T4203 |
|
| T4204 |
|
||

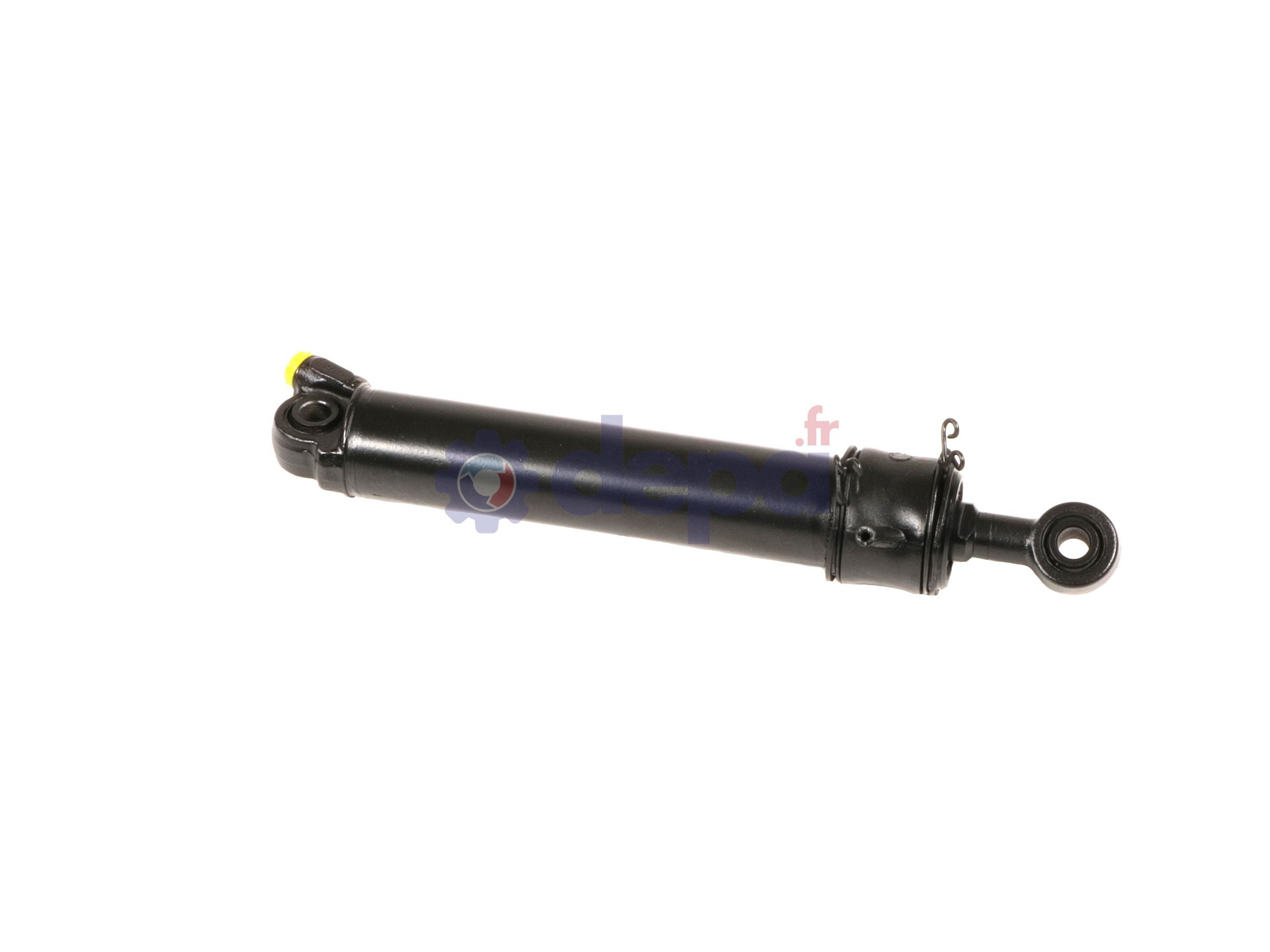

| Vérin | VR106 |
|
Equivalence to manufacturer references
CITROËN : 1663661880
CITROËN : 4000Y9
