Catalog

Search by vehicle

Category :

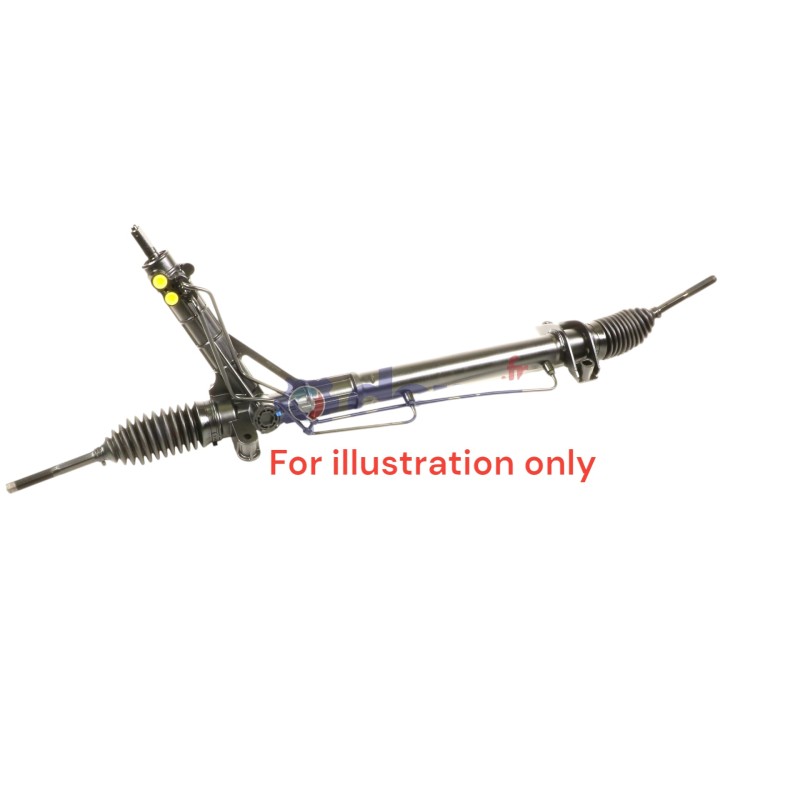

Hydraulic power steering rack

Return

TOYOTA RAV4

Name: TOYOTA RAV4
Brand: Depa
SKU: A1660R
Price: 539.49 EUR
Availability: InStock

Ref : A1660R

Family :CA

Number of splines on the pinion : 36

Presence of servotronic : Without

Tie rod thread size (tie rod end side) : M14 X 1,5

Mounting hole diameter : 12 mm

Steering wheel position : Left-hand drive

Thread length : 55 mm

Splined pinion : Yes

Total length : 1185 mm

Tie rod thread size (rack side) : M14 X 1,5

Fitting type : Screw

Manufacturer : ZF

INSTRUCTION MONTAGE

Oil flow rate for testing +/-0.5 : 5.49 L/min

Presence of non-return valve : SANS

Rack travel : 128.0 mm

Diameter of the rack : 24.00 mm

Rack housing bore diameter : 41.08 mm

Lock to lock turns : 2.75 tr

Tie rod end		RO145836
		RO145836
		RO145836
		RO145836
Tie rod		BI45810
Tie rod		BI45810
Boot kit for steering rack		T4212
Boot kit for steering rack		T4212

Equivalence to manufacturer references

TOYOTA : 4425042080
TOYOTA : 4425042040
TOYOTA : 4425042100
TOYOTA : 4425042021
TOYOTA : 4425042022
TOYOTA : 4425042020
