Catalog

Search by vehicle

Category :

Hydraulic power steering rack

Return

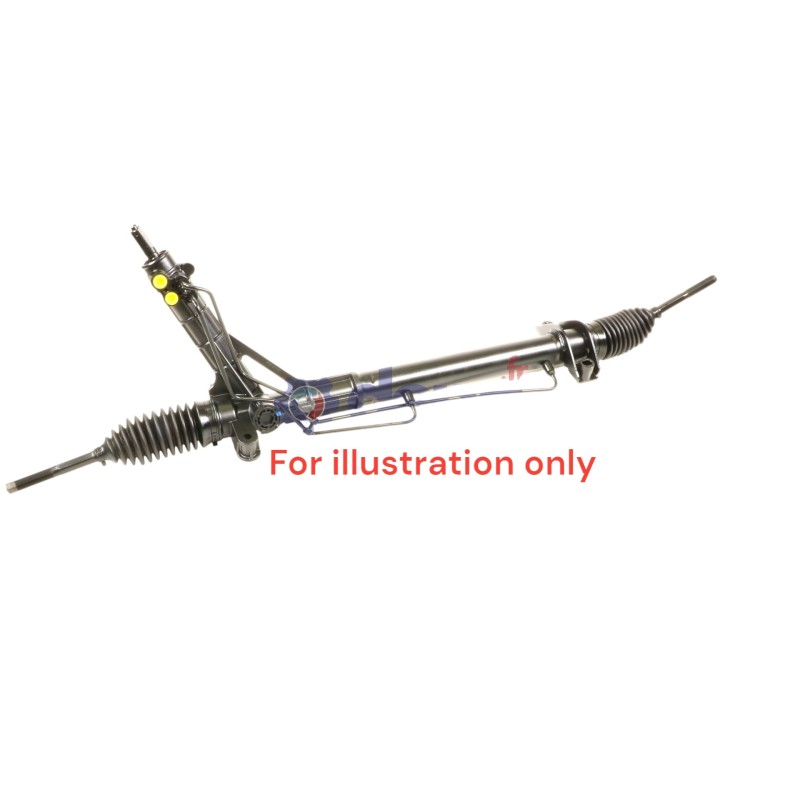

TOYOTA AVENSIS

Name: TOYOTA AVENSIS
Brand: Depa
SKU: A1689
Price: 439.43 EUR
Availability: OutOfStock

Ref : A1689

Matching vehicles :

AVENSIS II

Family :CA

Thread length : 45 mm

Number of splines on the pinion : 36

Splined pinion : Yes

Manufacturer : ZF

Mounting hole diameter : 10 mm

Total length : 1150 mm

Steering wheel position : Left-hand drive

Tie rod thread size (rack side) : M16 X 1,5

Presence of servotronic : Without

Tie rod thread size (tie rod end side) : M14 X 1,5

Fitting type : Screw

INSTRUCTION MONTAGE

Rack travel : 115.0 mm

Diameter of the rack : 24.00 mm

Rack housing bore diameter : 45.00 mm

Lock to lock turns : 2.90 tr

Presence of non-return valve : SANS

Oil flow rate for testing +/-0.5 : 6.09 L/min

Tie rod		BI45813
		BI45813
Boot kit for steering rack		4078
		4078

Equivalence to manufacturer references

TOYOTA : 4425005081
TOYOTA : 4425005082
TOYOTA : 4425005080
TOYOTA : 4550005030
TOYOTA : 4420005030
