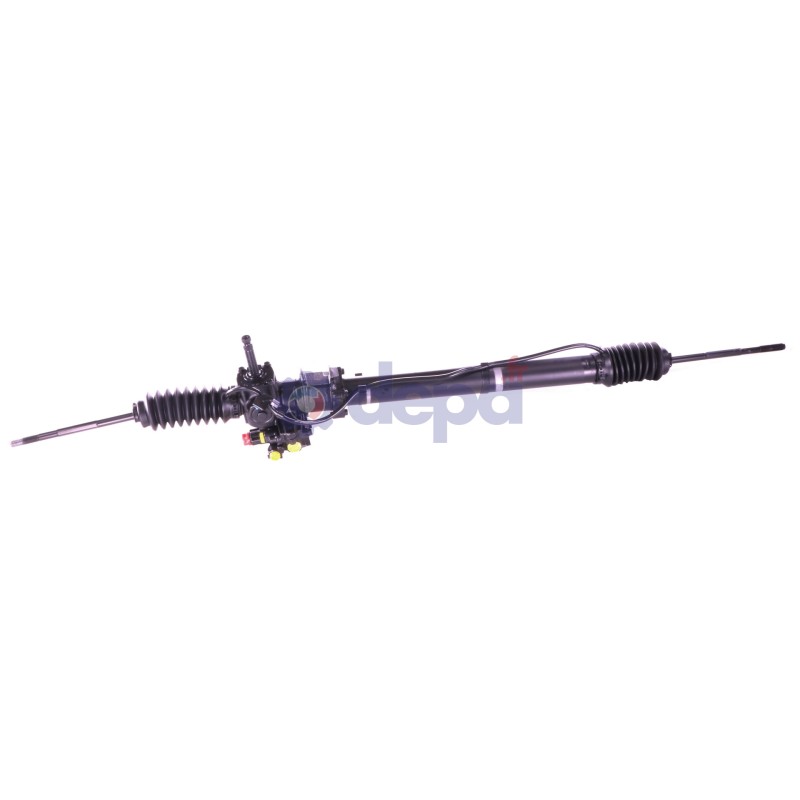

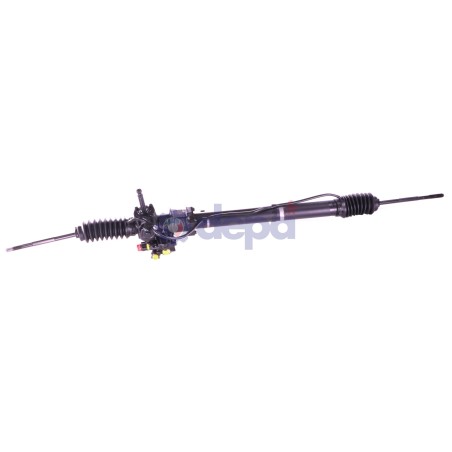

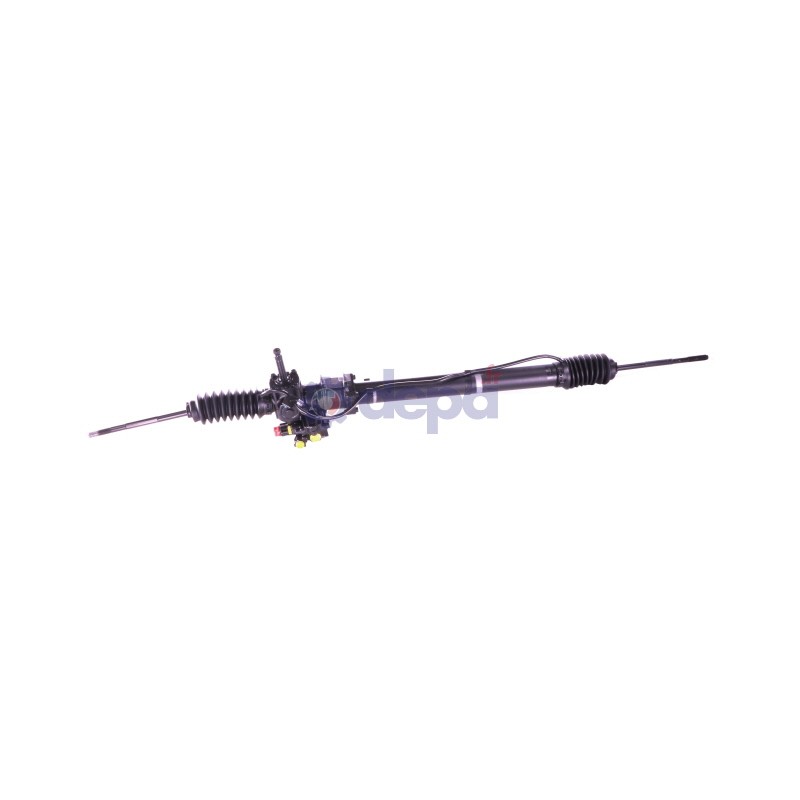

Hydraulic power steering rack
3D
Ref : A1756
Matching vehicles :
PRELUDE IIFamily :CA
Total length : 1240 mm
Steering wheel position : Left-hand drive
Presence of servotronic : Without
Splined pinion : Yes
Thread length : 40 mm
Number of splines on the pinion : 28
Tie rod thread size (tie rod end side) : M12 X100
Fitting type : Screw
INSTRUCTION MONTAGE
Lock to lock turns : 2.80 tr
Presence of non-return valve : SANS
Rack travel : 135.0 mm
Oil flow rate for testing +/-0.5 : 4.40 L/min
| Boot kit for steering rack | 4058 |
|
|
| 4058 |
|
Equivalence to manufacturer references
HONDA : 53601SB0678
HONDA : 53601SB0679
