Catalog

Search by vehicle

Category :

Hydraulic power steering rack

Return

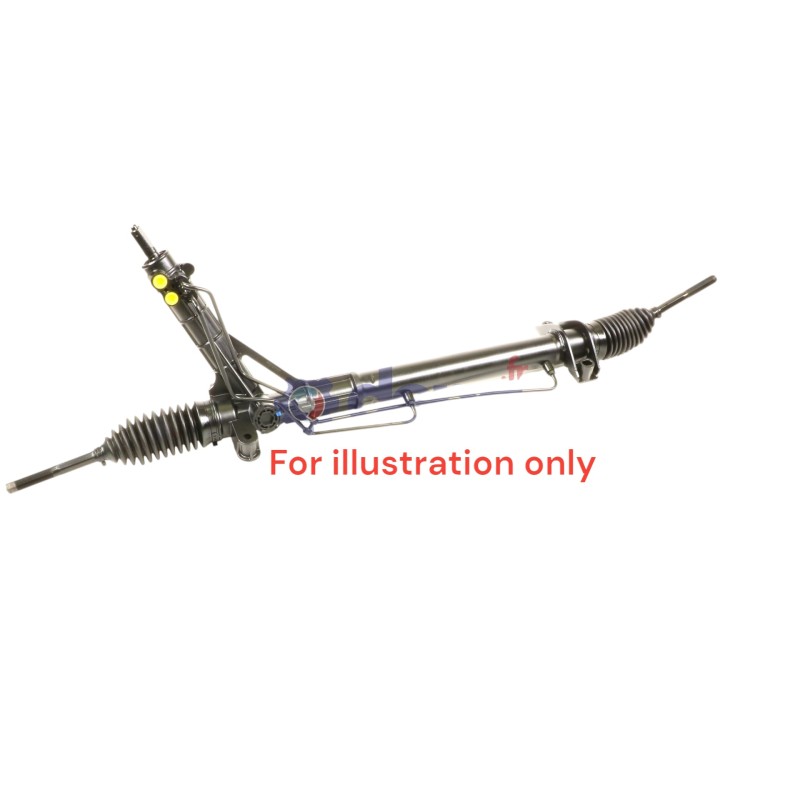

JUMPER BOXER DUCATO

Name: JUMPER BOXER DUCATO
Brand: Depa
SKU: A175R
Price: 533.35 EUR
Availability: InStock

Ref : A175R

Family :CA

Mounting hole diameter : 12 mm

Thread length : 50 mm

Splined pinion : Yes

Total length : 1405 mm

Presence of servotronic : Without

Observations : Power steering cylinder sold separetely

Number of splines on the pinion : 36

Tie rod thread size (rack side) : M16 X 1,5

Tie rod thread size (tie rod end side) : M16 X 1,5

Fitting type : Screw

Steering wheel position : Left-hand drive

Manufacturer : TRW

INSTRUCTION MONTAGE

Diameter of the rack : 30.00 mm

Lock to lock turns : 3.75 tr

Rack travel : 170 mm

Presence of non-return valve : SANS

Oil flow rate for testing +/-0.5 : 8.10 L/min

Rack housing bore diameter : 48.84 mm

Tie rod end	GAUCHE	RO154132
Tie rod end	DROITE	RO154132
Boot kit for steering rack	GAUCHE	4092
Tie rod	GAUCHE	BI54133
Tie rod	DROITE	BI54133
ROULEMENT		RLT040

Equivalence to manufacturer references

CITROËN : 4000E7
CITROËN : 4000E4
PEUGEOT : 4004E4
CITROËN : 1310352080
FIAT : 71722558
