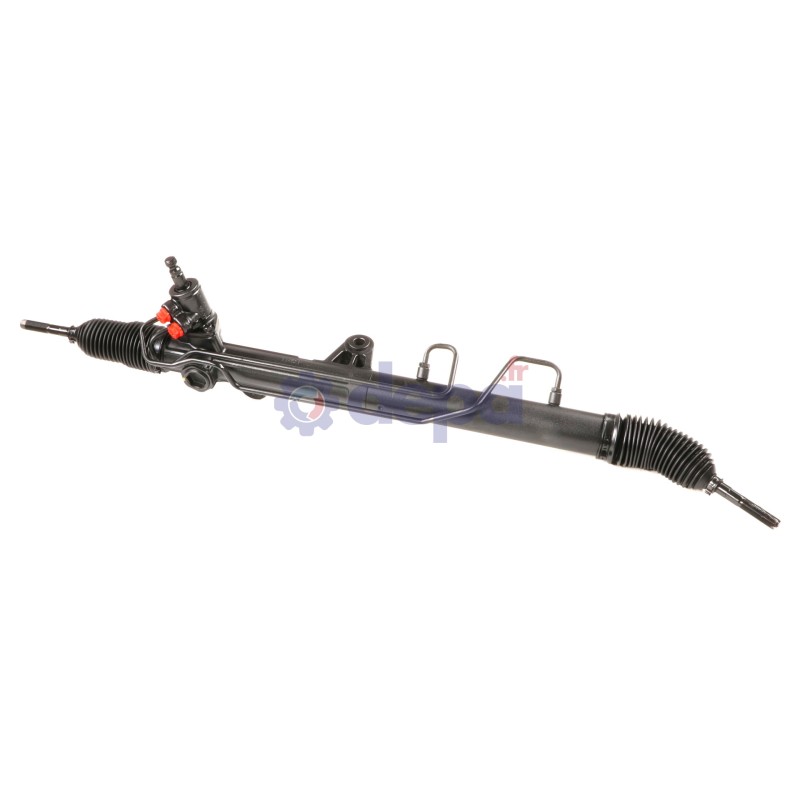

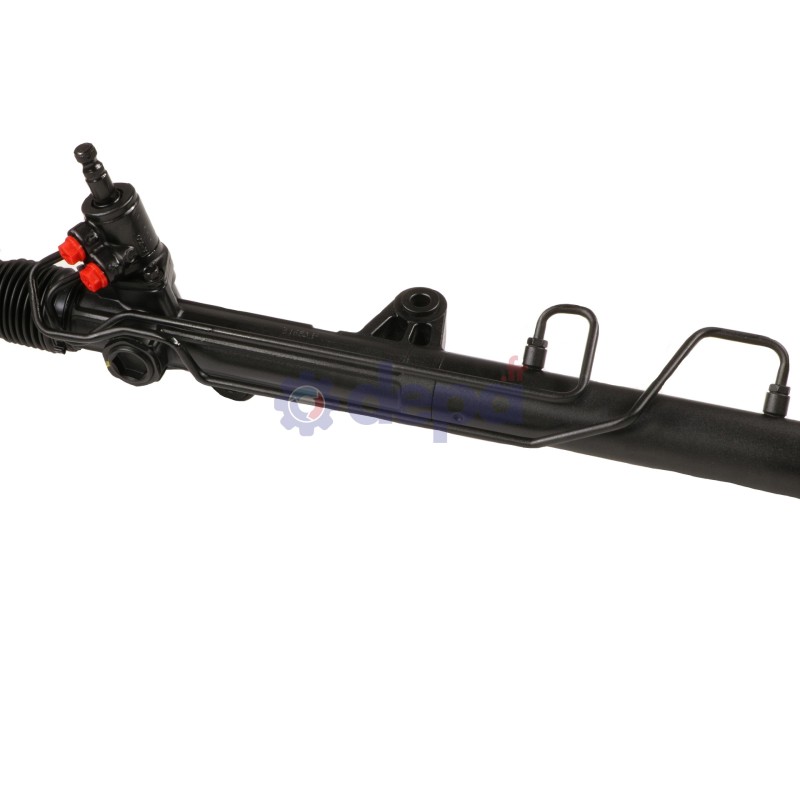

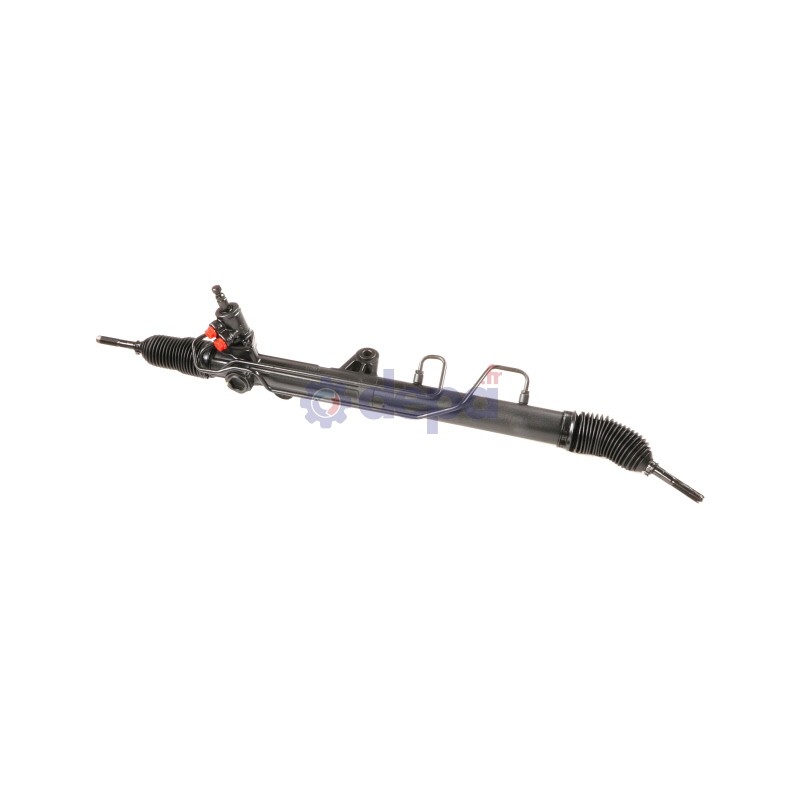

Hydraulic power steering rack
3D
Ref : A3202
Matching vehicles :
ACTYONFamily :CA
Total length : 1100 mm
Number of splines on the pinion : 36
Tie rod thread size (tie rod end side) : M16 X 100
Fitting type : Screw
Manufacturer : MANDO
Mounting hole diameter : 14 mm
Observations : Without sensor
Presence of servotronic : Without
Steering wheel position : Left-hand drive
Tie rod thread size (rack side) : M16 X 1,5
Splined pinion : Yes
INSTRUCTION MONTAGE
Diameter of the rack : 30.00 mm
Rack travel : 146.0 mm
Lock to lock turns : 3.60 tr
Oil flow rate for testing +/-0.5 : 6.70 L/min
Rack housing bore diameter : 49.50 mm
| Boot kit for steering rack | GAUCHE | 4075 |
|
| T4075 |
|
||
| DROITE | 4075 |
|
|
| T4075 |
|
Equivalence to manufacturer references
SSANGYONG : 46500-09001
SSANGYONG : 4650009002
SSANGYONG : 4650009005
SSANGYONG : 4650009003
SSANGYONG : 4650009004
