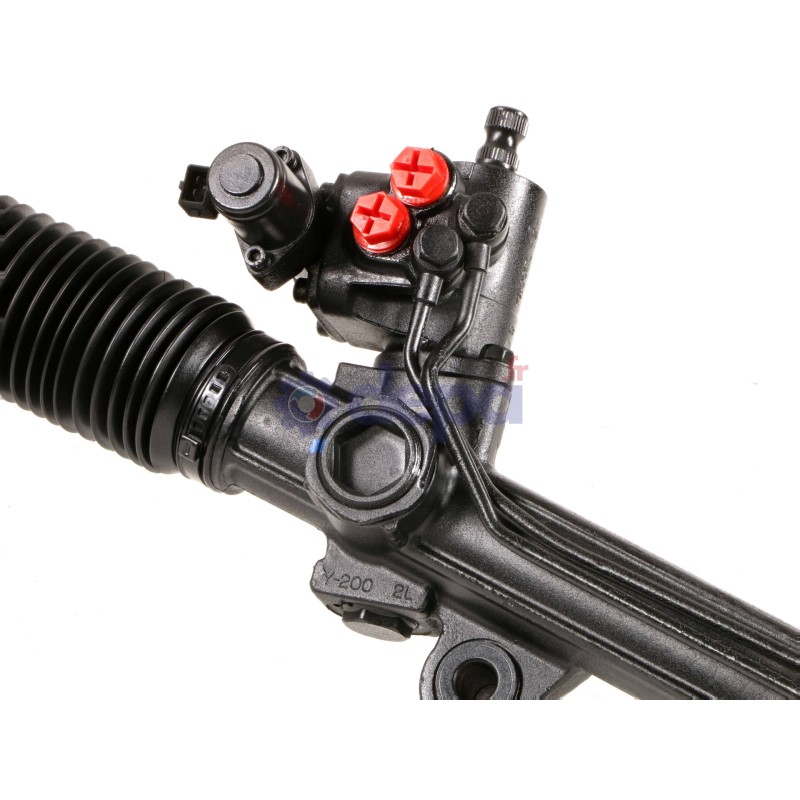

Hydraulic power steering rack

Return

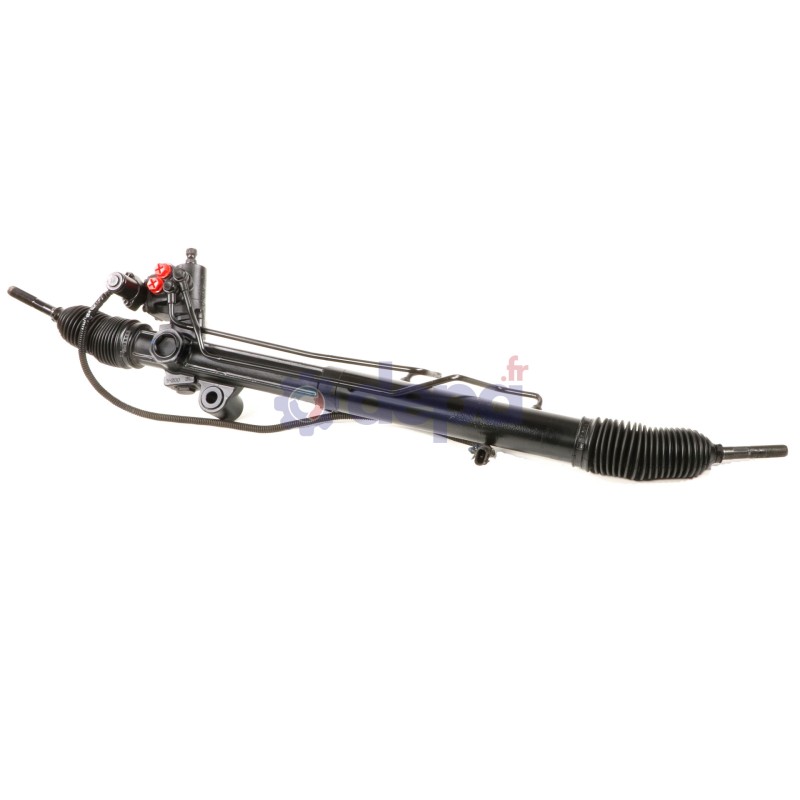

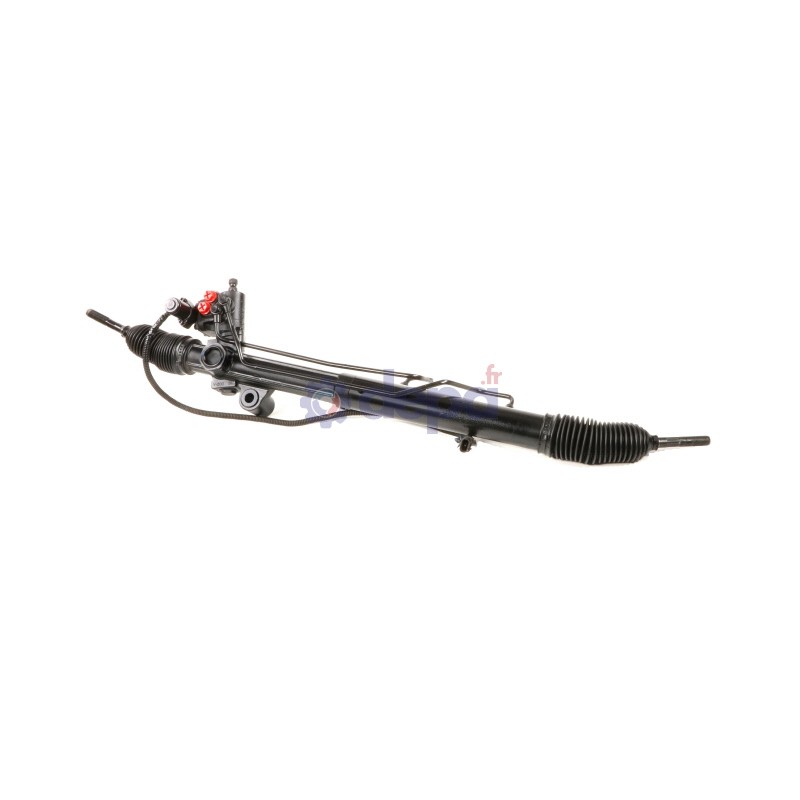

A3203_1.jpg 3D

SSANGYONG REXTON

Ref : A3203

Matching vehicles :

REXTON

Family :CA

Mounting hole diameter  : 14 mm

Number of splines on the pinion  : 36

Steering wheel position  : Left-hand drive

Fitting type  : Screw

Manufacturer of the sensor  : ZF

Observations  : Provided without sensor

Tie rod thread size (rack side)  : M16 X 1,5

Tie rod thread size (tie rod end side)  : M16 X 1,5

Thread length  : 50 mm

Splined pinion  : Yes

Manufacturer  : MANDO

Total length  : 1080 mm

Presence of servotronic  : With

INSTRUCTION MONTAGE

Diameter of the rack  : 30.00 mm

Rack housing bore diameter  : 49.50 mm

Lock to lock turns  : 3.75 tr

Rack travel  : 146.0 mm

Oil flow rate for testing +/-0.5  : 6.40 L/min

Tie rod GAUCHE BI89113
DROITE BI89113
Boot kit for steering rack 4078 HYUNDAI/KIA
4078 HYUNDAI/KIA

Equivalence to manufacturer references

  • SSANGYONG : 4650009017

  • SSANGYONG : 465000901H

  • SSANGYONG : 4650009019

  • SSANGYONG : 4650009018

  • SSANGYONG : 4650009014

  • SSANGYONG : 4650009015

  • SSANGYONG : 4650009016

  • SSANGYONG : 465000901B

  • SSANGYONG : 465000901C

  • SSANGYONG : 465000901D

  • SSANGYONG : 465000901G

  • SSANGYONG : 4651008013
