Category :

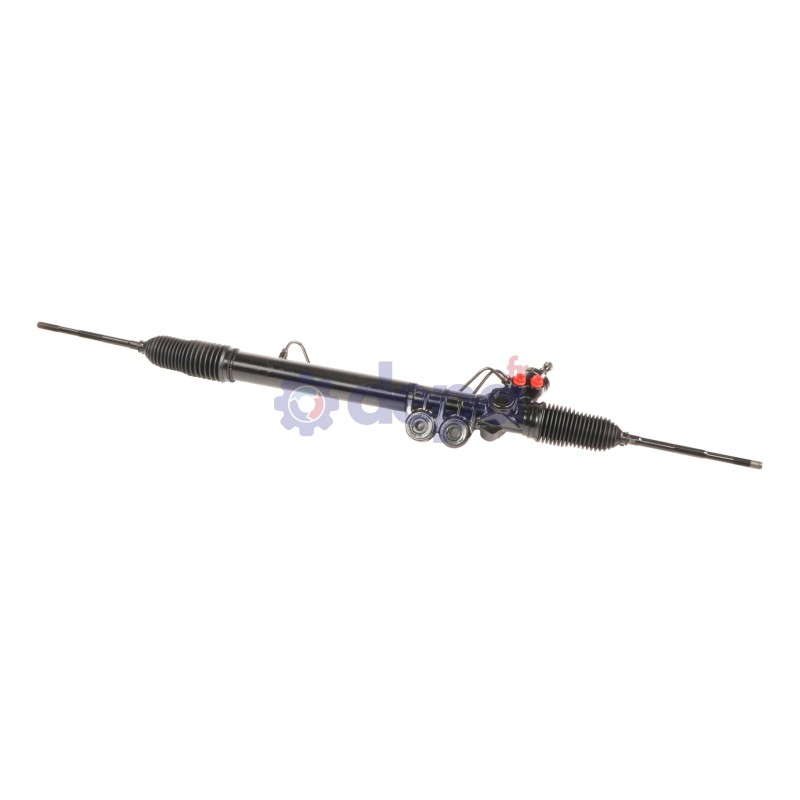

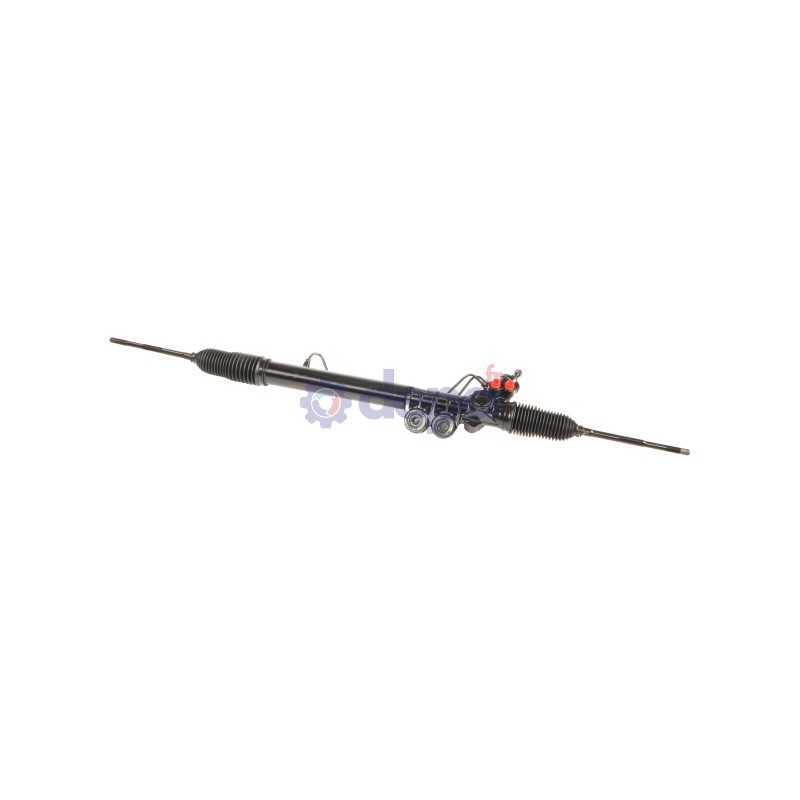

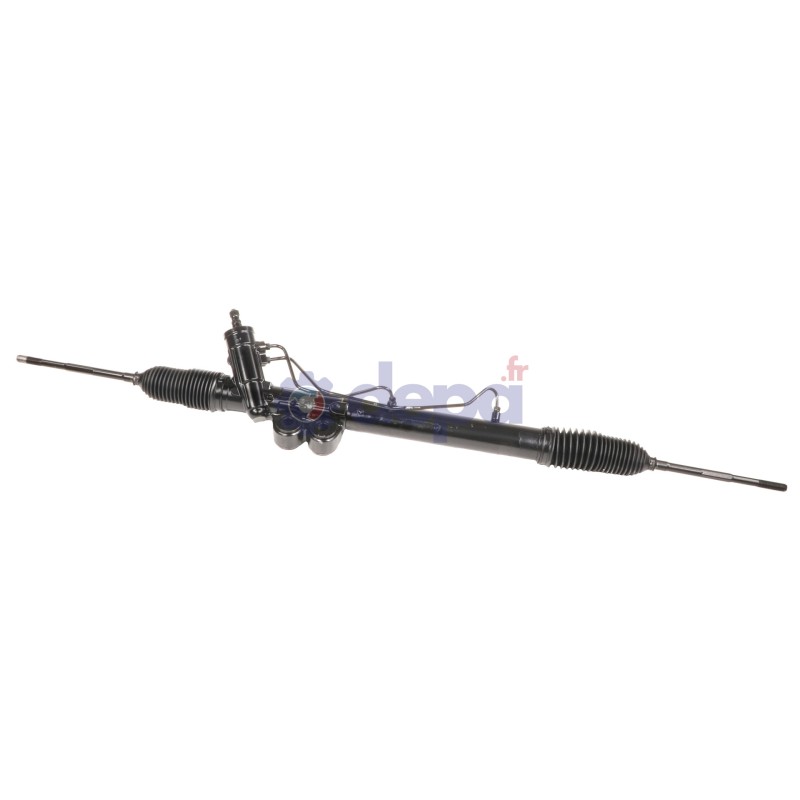

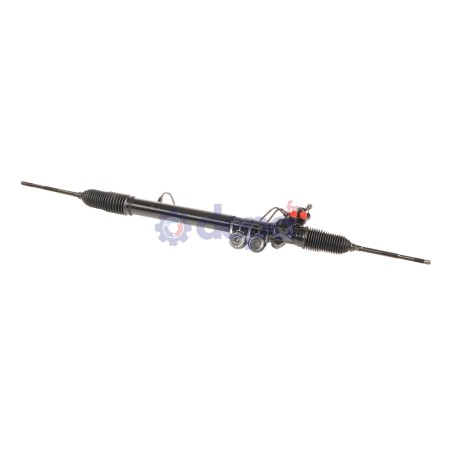

Hydraulic power steering rack
Ref : A3301
Matching vehicles :
D MAX II / TFFamily :CA
Thread length : 50 mm
Number of splines on the pinion : 36
Steering wheel position : Left-hand drive
Splined pinion : Yes
Fitting type : Screw
Total length : 1340 mm
Presence of servotronic : Without
Mounting hole diameter : 16.4 mm
INSTRUCTION MONTAGE
Rack travel : 158 mm
Lock to lock turns : 3.90 tr
Presence of non-return valve : SANS
Oil flow rate for testing +/-0.5 : 6.50 L/min
| Boot kit for steering rack | GAUCHE | T4355 |
|
| DROITE | T4355 |
|
Equivalence to manufacturer references
ISUZU : 97946132
ISUZU : 8979461320
