Catalog

Search by vehicle

Category :

Hydraulic power steering rack

Return

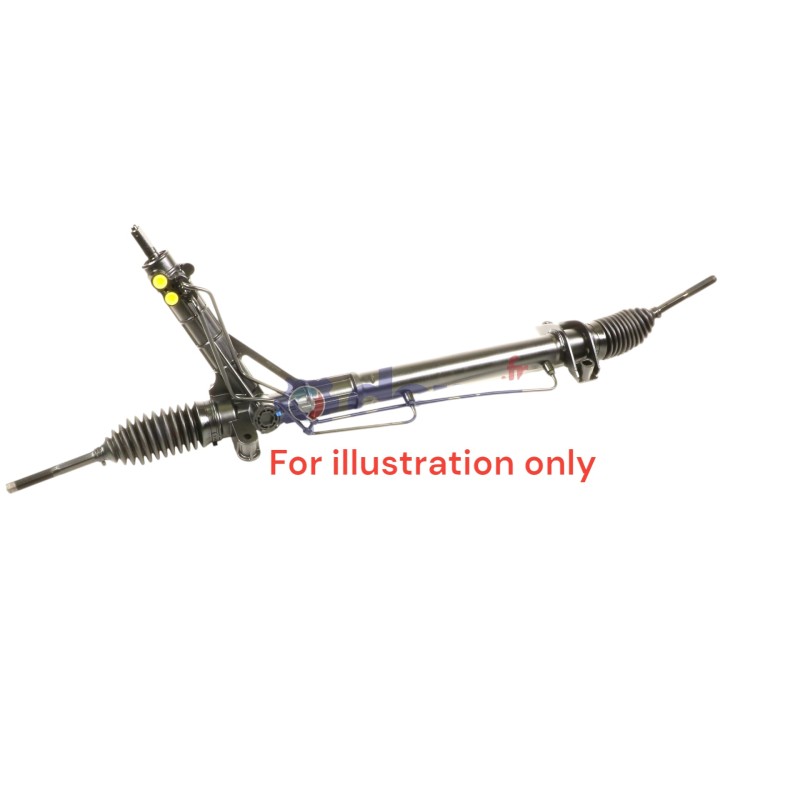

ISUZU D MAX I

Name: ISUZU D MAX I
Brand: Depa
SKU: A3302R
Price: 1504.93 EUR
Availability: OutOfStock

Ref : A3302R

Family :CA

Mounting hole diameter : 16 mm

Thread length : 50 mm

Total length : 1300 mm

Number of splines on the pinion : 36

Steering wheel position : Left-hand drive

Tie rod thread size (tie rod end side) : M18 X 1,5

Tie rod thread size (rack side) : M14 X 1,5

Splined pinion : Yes

Presence of servotronic : Without

Fitting type : Screw

INSTRUCTION MONTAGE

Lock to lock turns : 3.25 tr

Rack travel : 152.0 mm

Diameter of the rack : 32.00 mm

Rack housing bore diameter : 49.50 mm

Presence of non-return valve : SANS

Oil flow rate for testing +/-0.5 : 7.10 L/min

Boot kit for steering rack	GAUCHE	4075
Boot kit for steering rack	DROITE	4075

Equivalence to manufacturer references

ISUZU : 8981017800
ISUZU : 98101780
