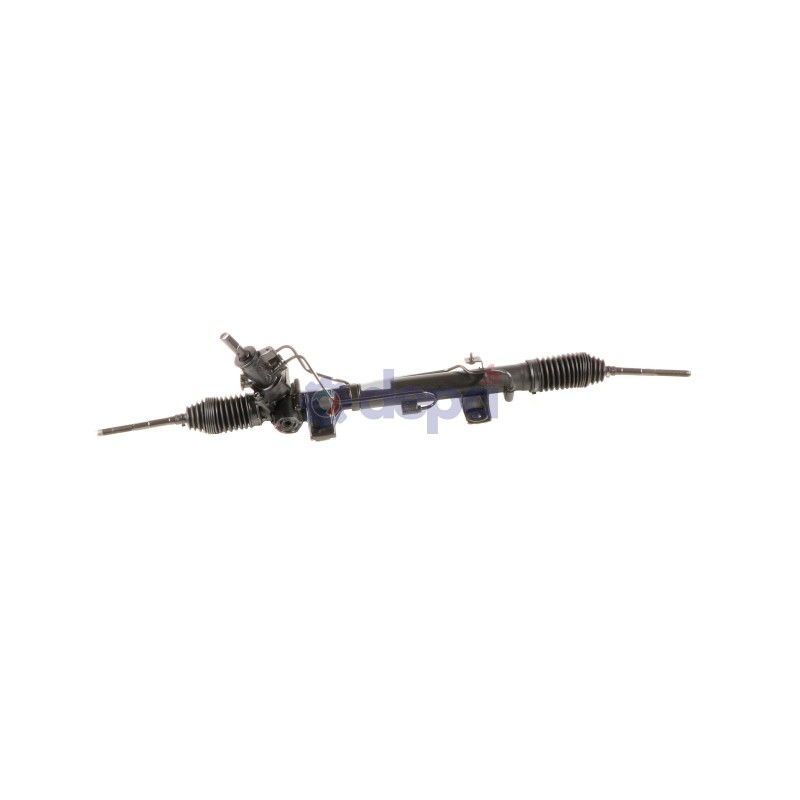

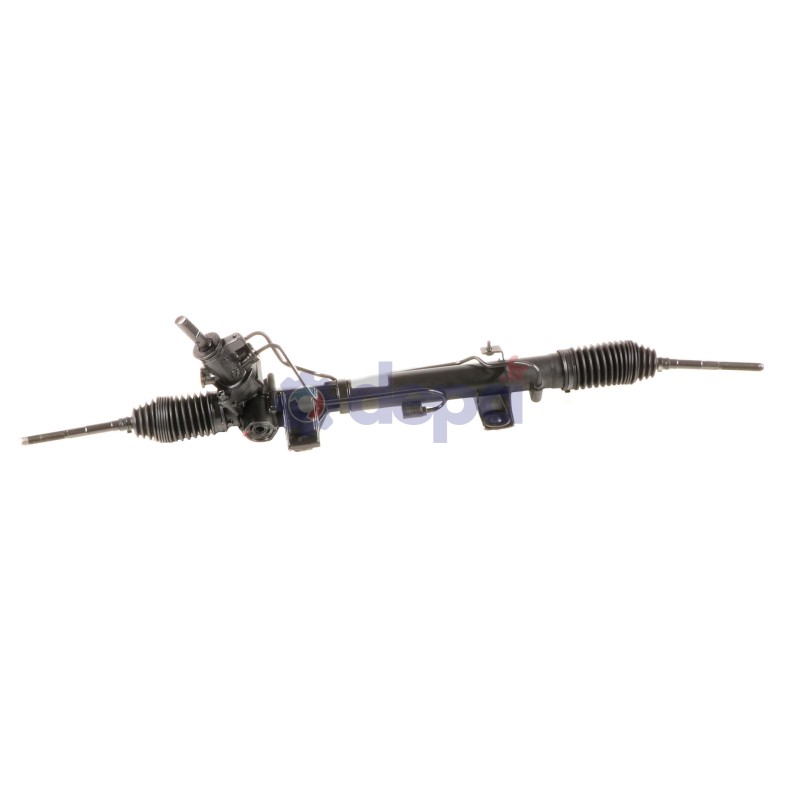

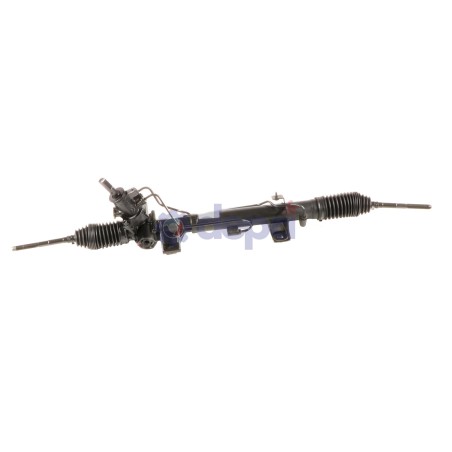

Hydraulic power steering rack
3D
Ref : A377
Matching vehicles :
LAGUNA 2Family :CA
Mounting hole diameter : 14 mm
Steering wheel position : Left-hand drive
Thread length : 65 mm
Tie rod thread size (tie rod end side) : M12 X100
Fitting type : Flanged
Manufacturer : SMI
Presence of servotronic : Without
Splined pinion : No
Total length : 1060 mm
Tie rod thread size (rack side) : M14 X 1,5
INSTRUCTION MONTAGE
Rack travel : 150.0 mm
Diameter of the rack : 28.00 mm
Presence of non-return valve : SANS
Lock to lock turns : 3.05 tr
Rack housing bore diameter : 39.80 mm
Rack to housing distance at full lock : 67 mm
Oil flow rate for testing +/-0.5 : 4.30 L/min
| Boot kit for steering rack | GAUCHE | T4255 |
|
| DROITE | T4255 |
|
|
| Tie rod | GAUCHE | BI5811 |
|
| DROITE | BI5811 |
|
Equivalence to manufacturer references
RENAULT : 8200706713
RENAULT : 7711134569
RENAULT : 8200430195
RENAULT : 8200023082
RENAULT : 6800000205
RENAULT : 6900000205
RENAULT : 6900000726
