Hydraulic power steering rack

Return

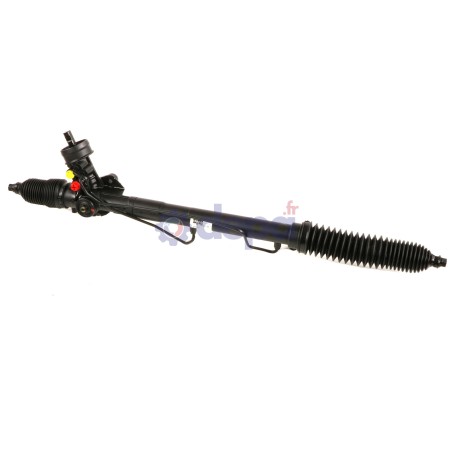

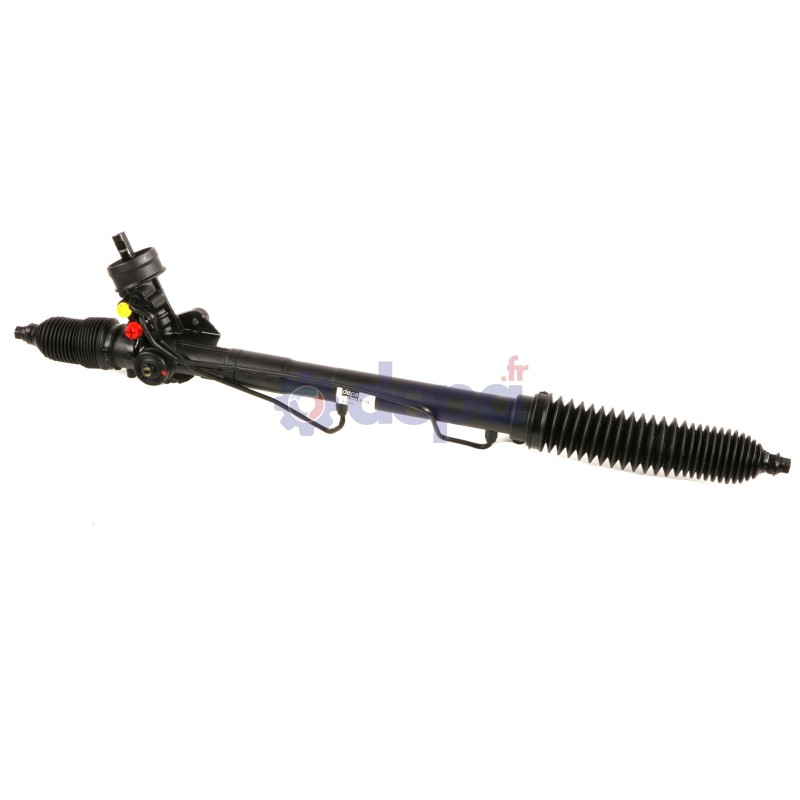

A4

Name: A4
Brand: Depa
SKU: A560R
Price: 415.48 EUR
Availability: InStock

Ref : A560R

Matching vehicles :

SUPERB I

Family :CA

Fitting type : Screw

Steering wheel position : Left-hand drive

Tie rod thread size (tie rod end side) : M16 X 1,5

Splined pinion : No

Manufacturer : ZF

Presence of servotronic : Without

Mounting hole diameter : 8 mm

Total length : 1025 mm

Observations : Without steering rack shock mount

Tie rod thread size (rack side) : M14 X 1,5

INSTRUCTION MONTAGE

Oil flow rate for testing +/-0.5 : 5.30 L/min

Lock to lock turns : 2.75 tr

Diameter of the rack : 27.95 mm

Rack travel : 170.0 mm

Rack housing bore diameter : 40.00 mm

Rack to housing distance at full lock : 32 mm

Presence of non-return valve : SANS

Boot kit for steering rack	GAUCHE	4075
	GAUCHE	T4075
	DROITE	4074
		T4074
		T4074
Tie rod end	GAUCHE	RO137630
Tie rod end	DROITE	RO137630
Tie rod	GAUCHE	BI37610
Tie rod	DROITE	BI37610

Equivalence to manufacturer references

AUDI : 4A1422065J
AUDI : 3B1422052M
AUDI : 8D1422053CX
AUDI : 8D1422053AX
AUDI : 8D2422052GX
AUDI : 8D1422052BX
AUDI : 8D1422052MX
AUDI : 8D1422052LX
AUDI : 8D1422052
AUDI : 8D1422052B
AUDI : 8D1422053EX
AUDI : 8D1422053BX
AUDI : 8D1422065J
AUDI : 8D1422066F
VOLKSWAGEN : 3B1422052MX
VOLKSWAGEN : 8D1422072
VOLKSWAGEN : 3B1422052Q
VOLKSWAGEN : 8D1422053
VOLKSWAGEN : 8D1422069F
VOLKSWAGEN : 3B1422071Q
VOLKSWAGEN : 3BD422065
VOLKSWAGEN : 8D1422071T
VOLKSWAGEN : 3B1422052R
VOLKSWAGEN : 3B1422052D
VOLKSWAGEN : 8D1422072N
VOLKSWAGEN : 3B1422053X
VOLKSWAGEN : 8D1422072S
AUDI : 8D1422052M
VOLKSWAGEN : 3B1422065A
VOLKSWAGEN : 3B1422071E
VOLKSWAGEN : 8D1422053C
VOLKSWAGEN : 8D1422071G
