Catalog

Search by vehicle

Category :

CREMAILLERE ASSISTEE ECH.

Return

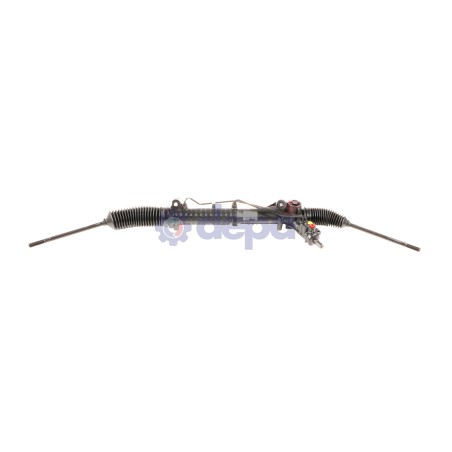

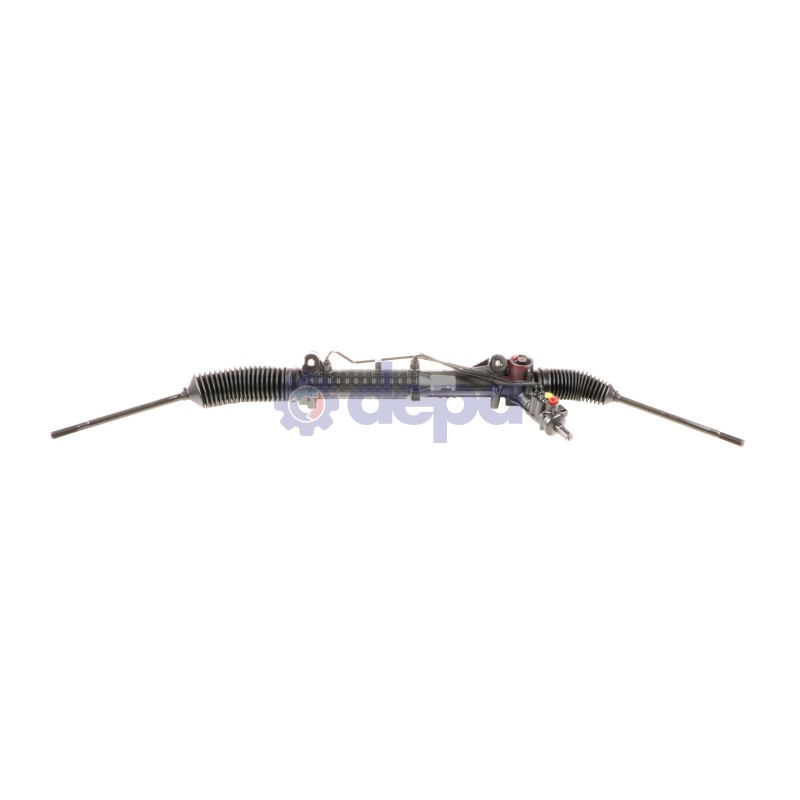

FORD TRANSIT TDCI

Name: FORD TRANSIT TDCI
Brand: Depa
SKU: A720R
Price: 603.97 EUR
Availability: InStock

Ref : A720R

Matching vehicles :

TRANSIT IV - TRANSIT CAMION PLATE-FORME/CHÂSSIS (FM_ _, FN_ _, FF_ _) - TRANSIT AUTOBUS/AUTOCAR (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) - TRANSIT FOURGON (FA_ _)

Family :CA

Mounting hole diameter : 12 mm

Manufacturer : TRW

Tie rod thread size (rack side) : M16 X 1,5

Thread length : 55 mm

Total length : 1480 mm

Splined pinion : No

Steering wheel position : Left-hand drive

Presence of servotronic : Without

Fitting type : Flanged

INSTRUCTION MONTAGE

Lock to lock turns : 3.25 tr

JOINT SPI

Outer diameter : 42.8 mm

Inner diameter : 30 mm

JOINT TORIQUE

Diamètre intérieur : 42.86 mm

ROULEMENT

Outer diameter : 34 mm

Diamètre intérieur : 19 mm

Width : 6.20 mm

SEGMENT

Diamètre extérieur : 49.1 mm

Diamètre intérieur : 44.3 mm

SOUFFLET DROITE

Type of material : NITRILE

SOUFFLET GAUCHE

Type de matière : NITRILE

KITS SOUFFLETS Crémaillères	GAUCHE	4079
	GAUCHE	4079
	DROITE	4079
	DROITE	4079
ROTULE direction	GAUCHE	RO14240
ROTULE direction	DROITE	RO14240
BIELLETTES	GAUCHE	BI4210
BIELLETTES	DROITE	BI4211
ROULEMENT		RLT040

Equivalence to manufacturer references

FORD : 1479736
FORD : 1510881
FORD : 1536313
FORD : 1566537
FORD : 1566547
FORD : 1672067
FORD : 1672069
FORD : 1744915
FORD : 1744918
FORD : 1795004
FORD : 1795006
FORD : 8C113200AD
FORD : 8C113200AE
FORD : 8C113200AF
FORD : 8C113200CA
FORD : 8C113200CB
FORD : 8C113200CC
FORD : 8C113200CD
FORD : 8C113200CE
FORD : 8C113200CF
FORD : RM8C113200AA
FORD : RM8C113200CA
