Catalog

Search by vehicle

Category :

CV joint

Return

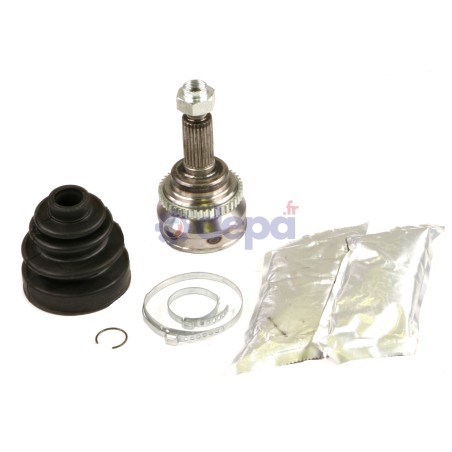

CV JOINT

Name: CV JOINT
Brand: Depa
SKU: JS3044
Price: 86.76 EUR
Availability: InStock

Ref : JS3044

Matching vehicles :

IGNIS II

Family :JH

Diameter (big) : 68 mm

Diameter (little) : 18 mm

Outer spline diameter : 26 mm

Housing diameter : 78 mm

Shoulder diameter : 48 mm

Height : 22 mm

Length : 97 mm

Number of external splines : 25

Number of splines on inner race : 28

Number of grooves : 1

Type of material : Neoprene

Thread pitch type : 18X150

Type and position (snap ring/circlip) : Internal snap ring

Nut type : To strike

COURONNE ABS

Outer diameter : 72 mm

Inner diameter : 63 mm

Width : 8 mm

Number of teeth : 43

Sealing kit		5002
ABS ring		COU031
Fixation		EC017
