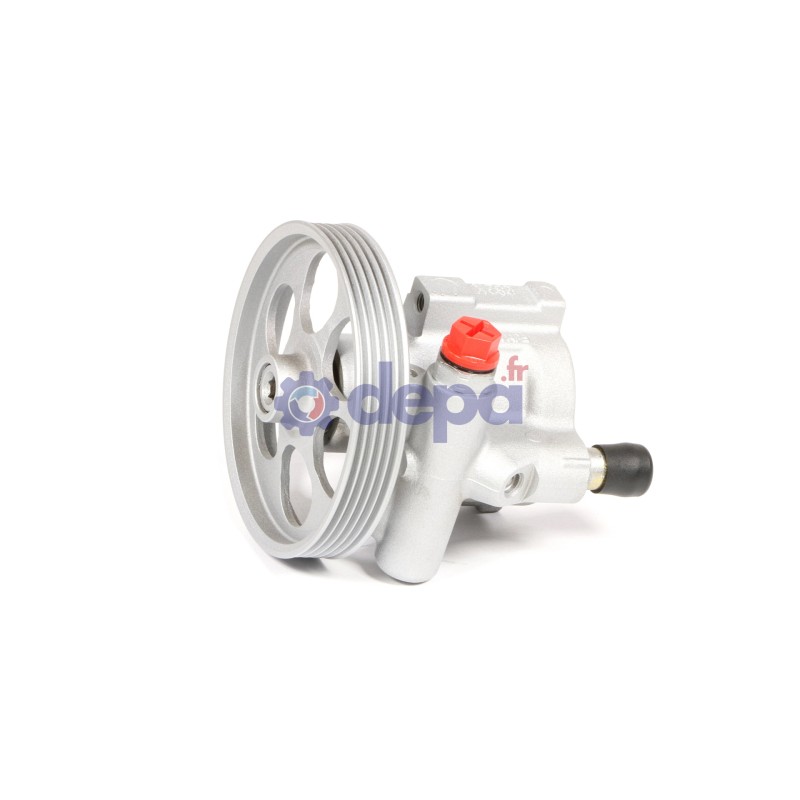

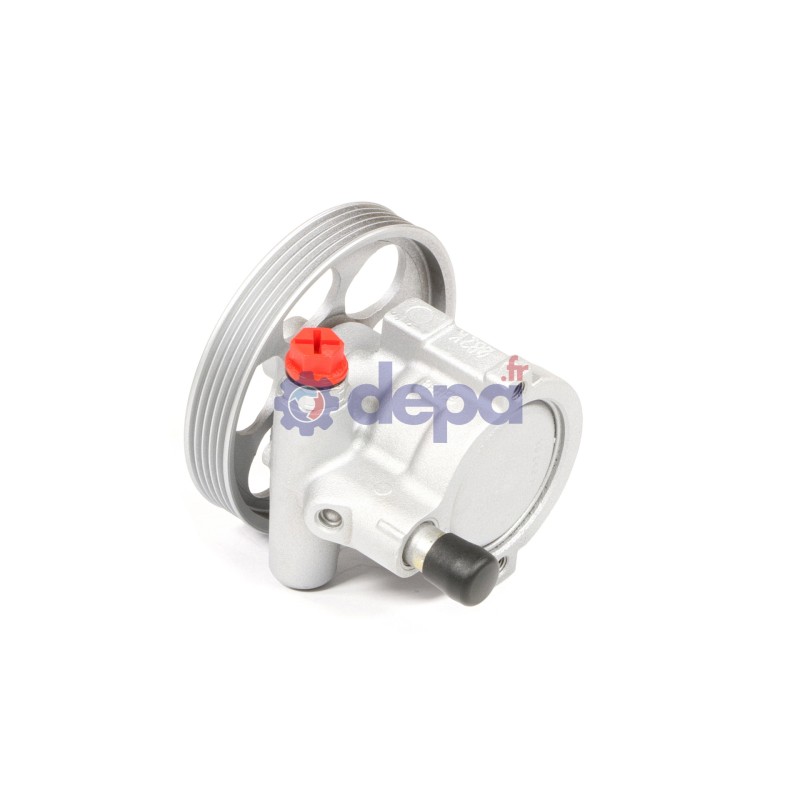

Hydraulic power steering pump

Return

RENAULT TRAFIC

Ref : PA306

Matching vehicles :

TRAFIC II - PRIMASTAR - LAGUNA 2 - MASTER 2

Family :PA

Axle diameter  : 19 mm

Pulley diameter  : 125 mm

Manufacturer  : SAGINAW

Height  : 100 mm

Number of mounting points  : 2

Number of ribs  : 5

Steering wheel position  : Left-hand drive

Presence of the pulley  : With

Presence of the reservoir  : Without

Presence of the support  : Without

Type of material  : Aluminium

Type of pipe connection  : Straight

INSTRUCTION MONTAGE

Maximum pressure  : 107.0 bar

JOINT TORIQUE

Inner diameter  : 64.77 mm

POULIE

Diameter of the axle  : 19 mm

Outer diameter  : 125 mm

Width  : 21.5 mm

Number of ribs  : 5

Pulley PO0020

Equivalence to manufacturer references

  • RENAULT : 491100246R+7700115621

  • RENAULT : 491103097R

  • RENAULT : 491105477R+7700115621

  • RENAULT : 491105879R+7700115621

  • RENAULT : 8200024778

  • RENAULT : 8200096704+7700115621

  • RENAULT : 8200709229+7700115621

  • RENAULT : 8200838037
