Catalog

Search by vehicle

Category :

Transmission

Return

Equivalence to manufacturer references

CITROËN : 9820471280
OPEL : 95526663
PEUGEOT : 1610205580
PEUGEOT : 9677561480
PEUGEOT : 9820471280

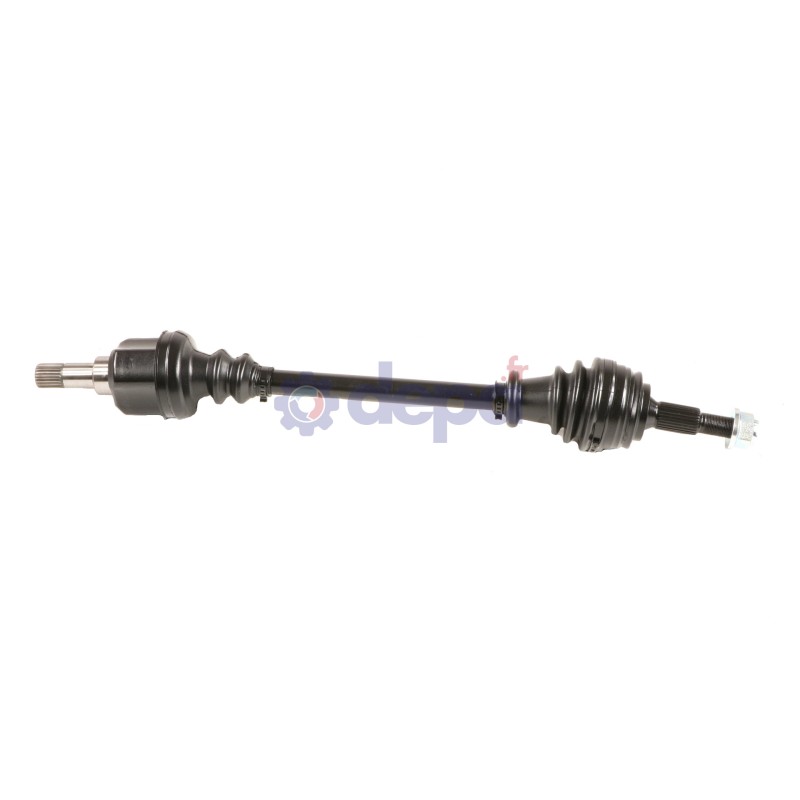

PEUGEOT 308 II LEFT-SIDE

Name: PEUGEOT 308 II LEFT-SIDE
Brand: Depa
SKU: 3088550
Price: 156 EUR
Availability: InStock

Ref : 3088550

Matching vehicles :

RIFTER - 308 II - COMBO E (K9) - BERLINGO 3

Family :TR

Non-collapsed length : 700 mm

ABS on the vehicle : Yes

FIXATION COTE ROUE

Height : 25 mm

Thread pitch type : 22X150

Nut type : Washer

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26 mm

Housing diameter : 71 mm

Length of the gearbox output without seal seat : 62 mm

Number of external splines : 24

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 28.5 mm

Diamètre du bol : 86 mm

Shoulder diameter : 58 mm

Nombre de cannelures extérieures : 28

Number of splines on inner race : 34

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 70 mm

Diameter (little) : 26 mm

Beads thickness : 13 mm

Length : 96 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 20 mm

Longueur : 116 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 33 mm

Height : 26 mm

Number of splines : 34

Sealing kit	COTE ROUE	T3074
		5004
		5010
	COTE BOITE	6137
		6031
		6106
		6034
		6121
Fixation	COTE ROUE	EC011
CV joint	COTE ROUE	JP80
CV joint	COTE BOITE	CBMP34GT
Tripod joint	COTE BOITE	TRIC43
