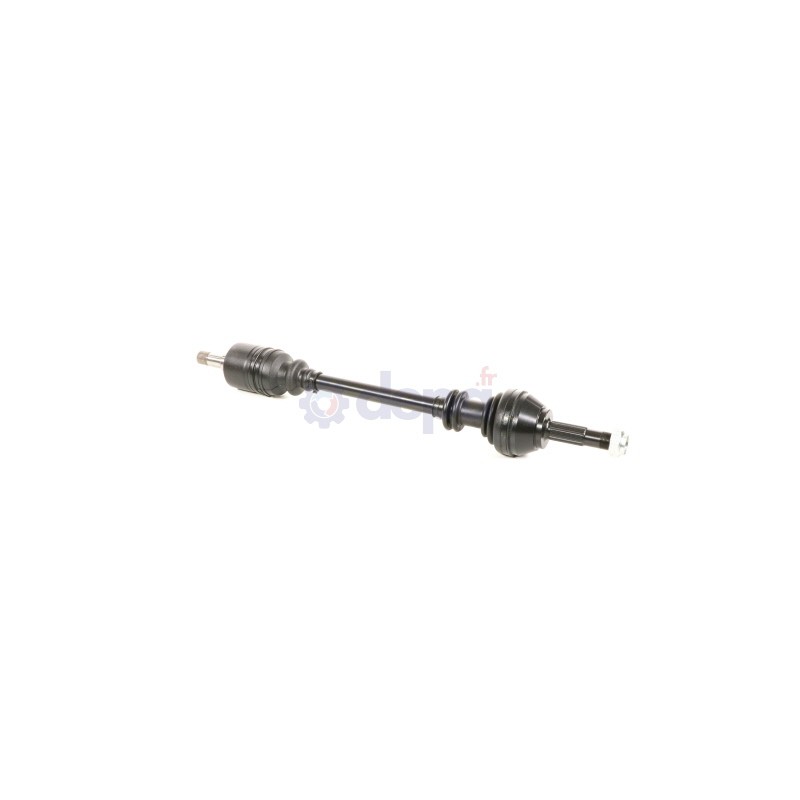

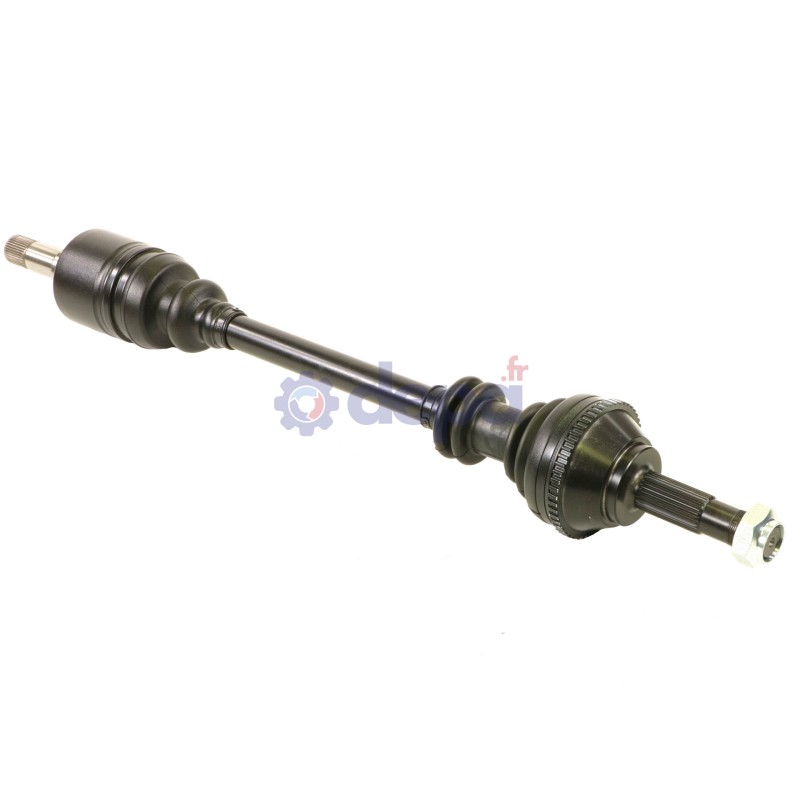

BOXER DUCATO JUMPER WITH ABS LEFT-SIDE

Name: BOXER DUCATO JUMPER WITH ABS LEFT-SIDE
Brand: Depa
SKU: 3098454
Price: 195.57 EUR
Availability: InStock

Ref : 3098454

Matching vehicles :

JUMPER - DUCATO - BOXER

Family :TR

Height : 17 mm

Compressed length : 805 mm

Non-compressed length : 770 mm

ABS on the vehicle : Yes

Thread pitch type : 28X150

Nut type : To strike

COURONNE ABS COTE ROUE

Outer diameter : 110 mm

Inner diameter : 96 mm

Width : 8 mm

Number of teeth : 54

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 28 mm

Housing diameter : 89 mm

Number of external splines : 37

Number of splines on inner race : 39

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 30 mm

Diamètre du bol : 100 mm

Shoulder diameter : 63 mm

Nombre de cannelures extérieures : 28

Nombre de cannelures sur la noix : 39

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 75 mm

Diameter (little) : 28 mm

Length : 93 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 95 mm

Diamètre (petit) : 24 mm

Longueur : 150 mm

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 39 mm

Height : 28 mm

Number of splines : 39

Sealing kit	COTE ROUE	T3078
		T3008
		5058
	COTE BOITE	6115
		T3008
		6035
Fixation	COTE ROUE	EC009
CV joint	COTE ROUE	JC8454
CV joint	COTE BOITE	CBMC44G
Spring	COTE BOITE	REC44
Tripod joint	COTE BOITE	TRIC44
Transmission seal		B4010
ABS ring		COU006

Equivalence to manufacturer references

PEUGEOT : 3272J3
PEUGEOT : 3272J4
