Catalog

Search by vehicle

Category :

Transmission

Return

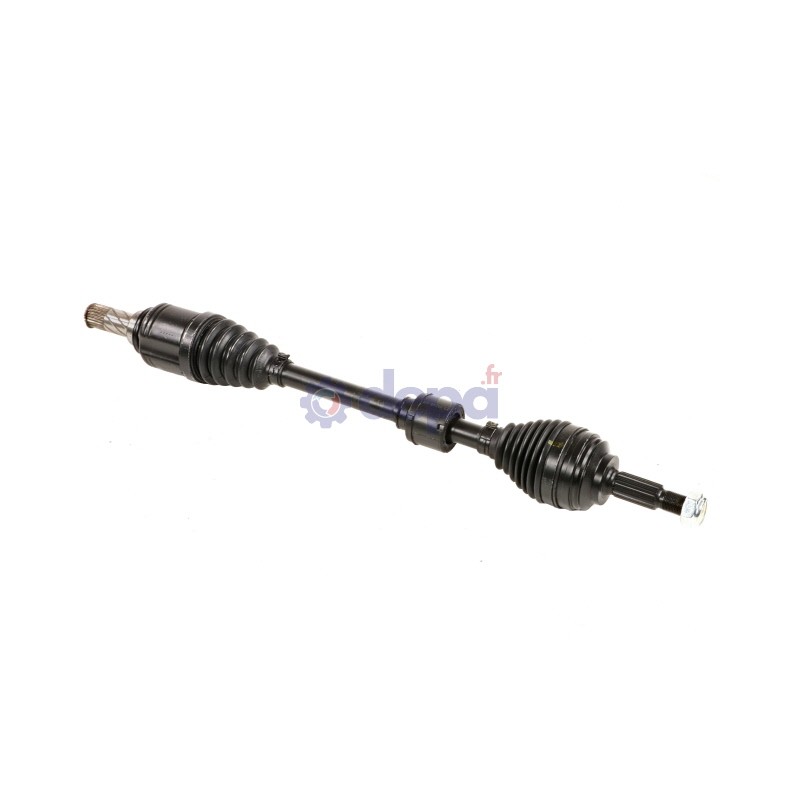

RENAULT CLIO 4 LEFT-SIDE

Name: RENAULT CLIO 4 LEFT-SIDE
Brand: Depa
SKU: 3100750
Price: 181.97 EUR
Availability: InStock

Ref : 3100750

Matching vehicles :

CLIO 4

Family :TR

Height : 22 mm

Non-compressed length : 690 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26.5 mm

Housing diameter : 67 mm

Length of the gearbox output without seal seat : 64 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25.1 mm

Diamètre du bol : 75.4 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 23

Number of splines on inner race : 28

Observations : Threading Ø20mm

Type and position (snap ring/circlip) : Internal snap ring

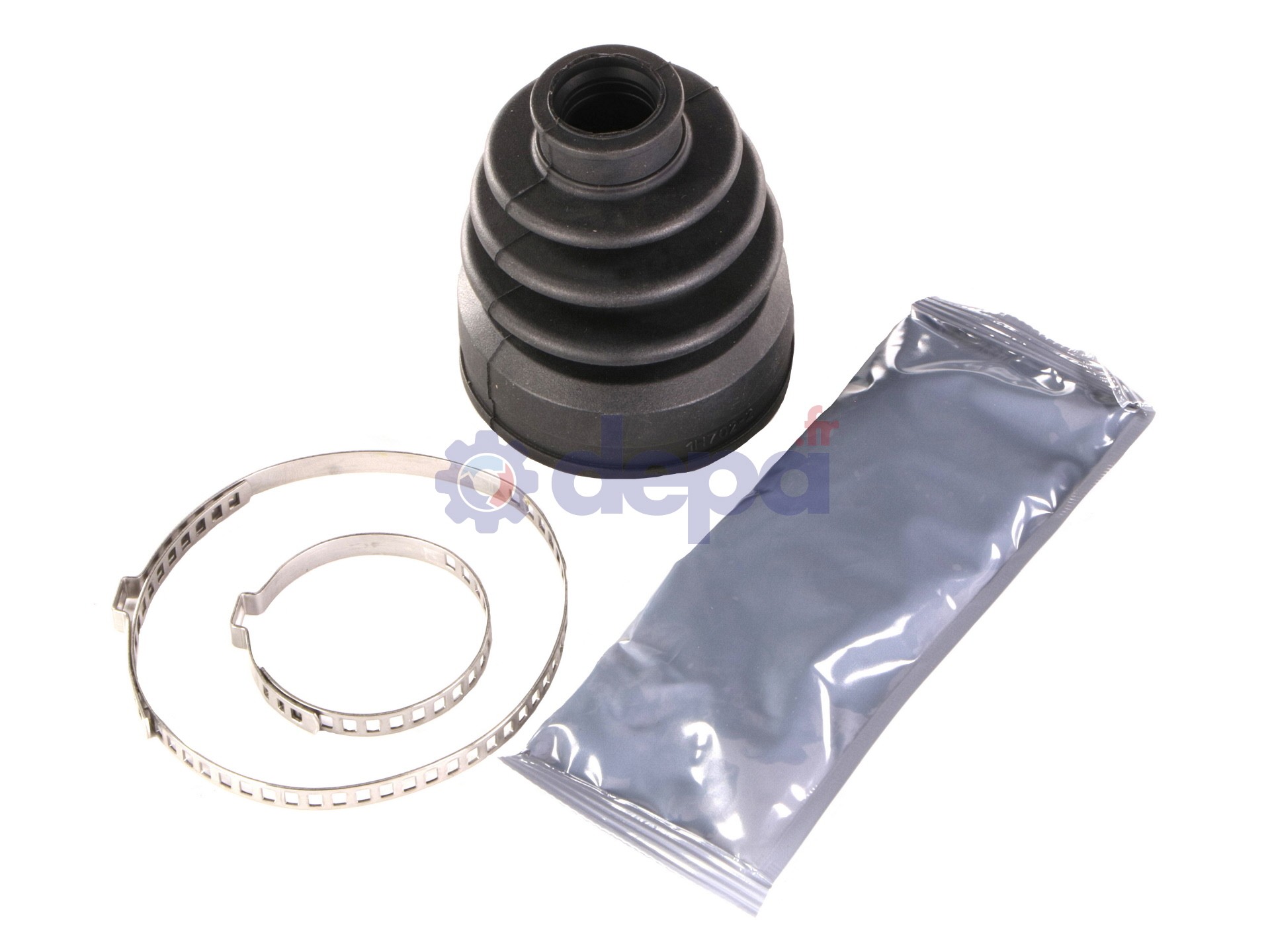

SOUFFLET COTE BOITE

Diameter (big) : 58 mm

Diameter (little) : 20.5 mm

Beads thickness : 10 mm

Length : 85 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 32.25 mm

Height : 22 mm

Number of splines : 28

Fixation	COTE ROUE	EC051
Sealing kit	COTE ROUE	5002
Sealing kit	COTE BOITE	6048
CV joint	COTE ROUE	JR07
CV joint	COTE BOITE	CBMR07GT

Equivalence to manufacturer references

RENAULT : 391012838R
RENAULT : 391018662R
