Catalog

Search by vehicle

Category :

Transmission

Return

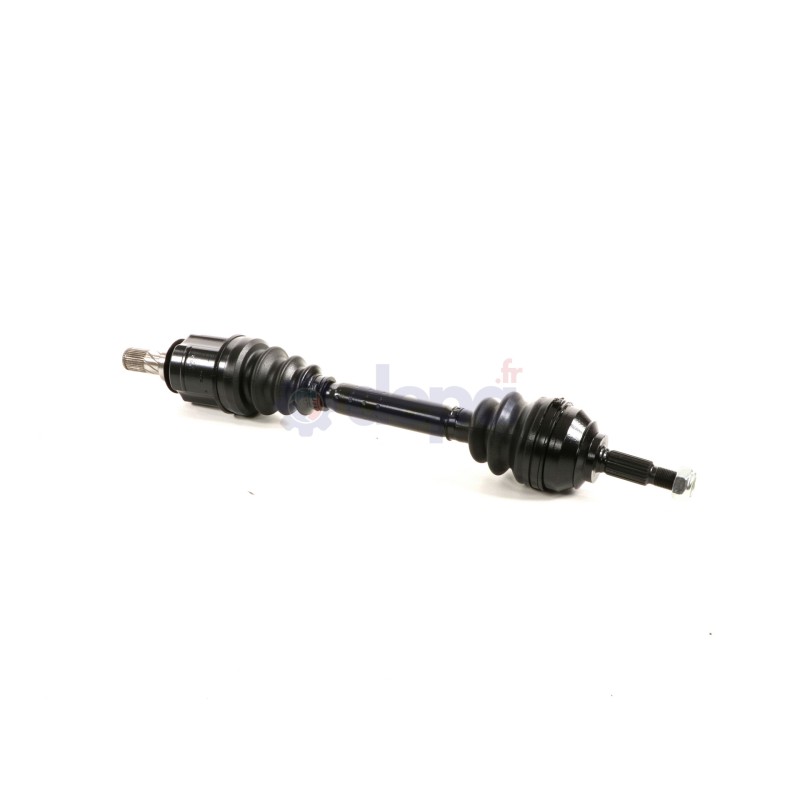

RENAULT CLIO 4 LEFT-SIDE

Name: RENAULT CLIO 4 LEFT-SIDE
Brand: Depa
SKU: 3100770
Price: 181.97 EUR
Availability: InStock

Ref : 3100770

Matching vehicles :

CLIO 4

Family :TR

Height : 22 mm

Non-compressed length : 645 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26.7 mm

Housing diameter : 71 mm

Length of the gearbox output without seal seat : 54 mm

Number of external splines : 34

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25 mm

Diamètre du bol : 83 mm

Shoulder diameter : 49 mm

Nombre de cannelures extérieures : 23

Number of splines on inner race : 33

Type and position (snap ring/circlip) : Internal snap ring

SOUFFLET COTE BOITE

Diameter (big) : 65 mm

Diameter (little) : 23 mm

Beads thickness : 10.5 mm

Length : 90 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 78 mm

Diamètre (petit) : 23 mm

Longueur : 110 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 37.5 mm

Outer diameter : 64.34 mm

Height : 26.6 mm

Number of splines : 33

Sealing kit	COTE ROUE	5016
Sealing kit	COTE BOITE	6082
Fixation	COTE ROUE	EC051
CV joint	COTE ROUE	JR0770
CV joint	COTE BOITE	CBMR0770GT
Tripod joint	COTE BOITE	TRIR13

Equivalence to manufacturer references

RENAULT : 391014886R
RENAULT : 391018401R
