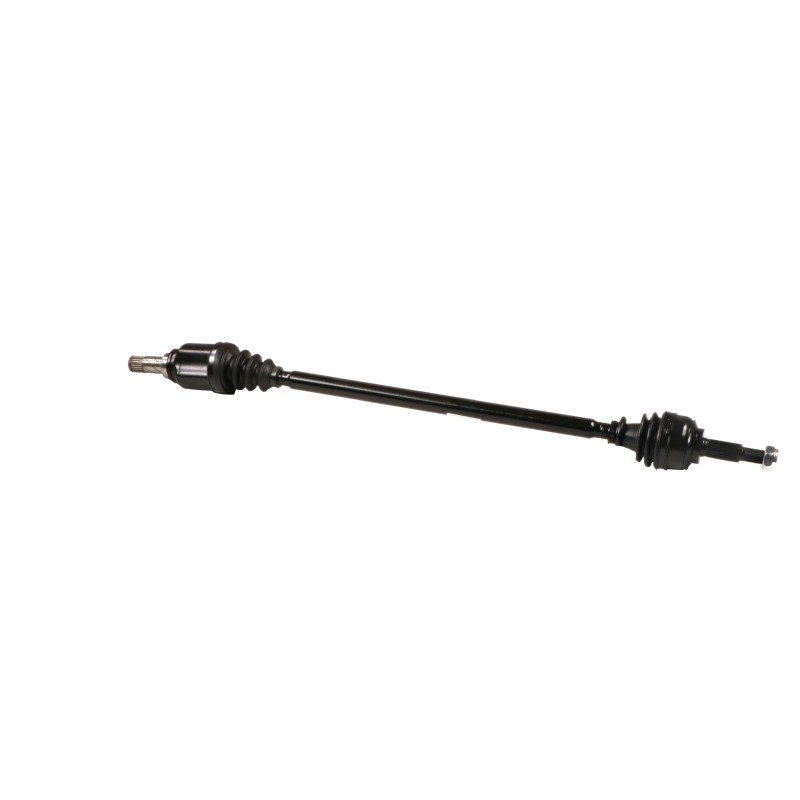

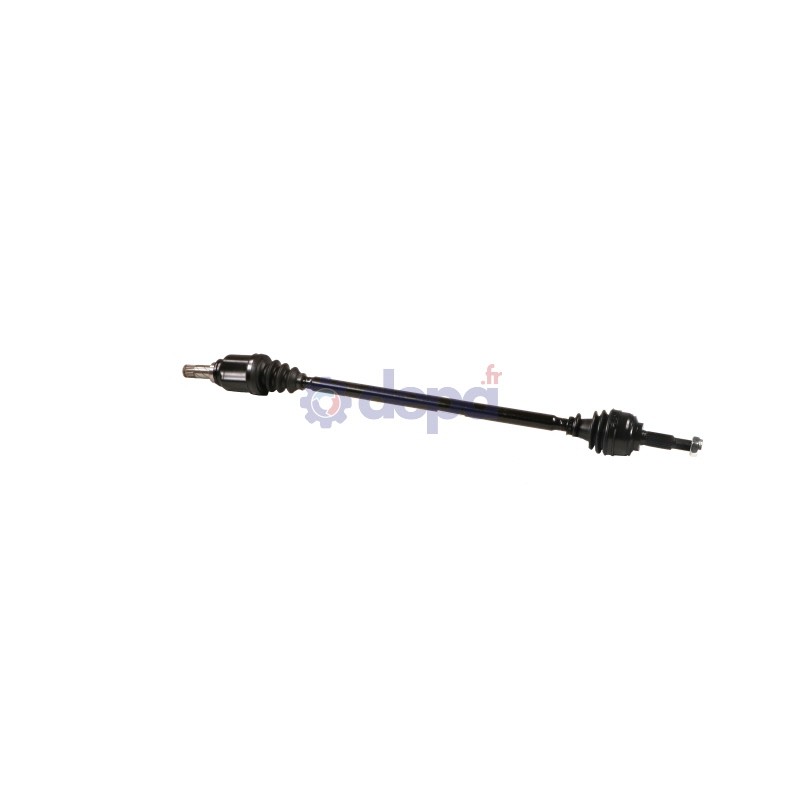

RENAULT CAPTUR RIGHT-SIDE

Name: RENAULT CAPTUR RIGHT-SIDE
Brand: Depa
SKU: 3101020
Price: 209.87 EUR
Availability: InStock

Ref : 3101020

Matching vehicles :

CAPTUR

Family :TR

Height : 22 mm

Compressed length : 918 mm

Non-compressed length : 950 mm

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 40 mm

Outer spline diameter : 26.5 mm

Housing diameter : 64 mm

Length of the gearbox output without seal seat : 63 mm

Number of external splines : 26

Number of splines on inner race : 21

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25 mm

Diamètre du bol : 75 mm

Shoulder diameter : 52.5 mm

Nombre de cannelures extérieures : 23

Nombre de cannelures sur la noix : 21

Type and position (snap ring/circlip) : Centered snap ring

SOUFFLET COTE BOITE

Diameter (big) : 66 mm

Diameter (little) : 21 mm

Beads thickness : 15 mm

Length : 86 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 30.5 mm

Height : 24 mm

Number of splines : 21

CV joint	COTE ROUE	JR101
CV joint	COTE BOITE	CBMR11GT
Sealing kit	COTE ROUE	5002
	COTE BOITE	6199
	COTE BOITE	6061
Fixation	COTE ROUE	EC051
Tripod joint	COTE BOITE	TRIC05

Equivalence to manufacturer references

RENAULT : 391007556R
