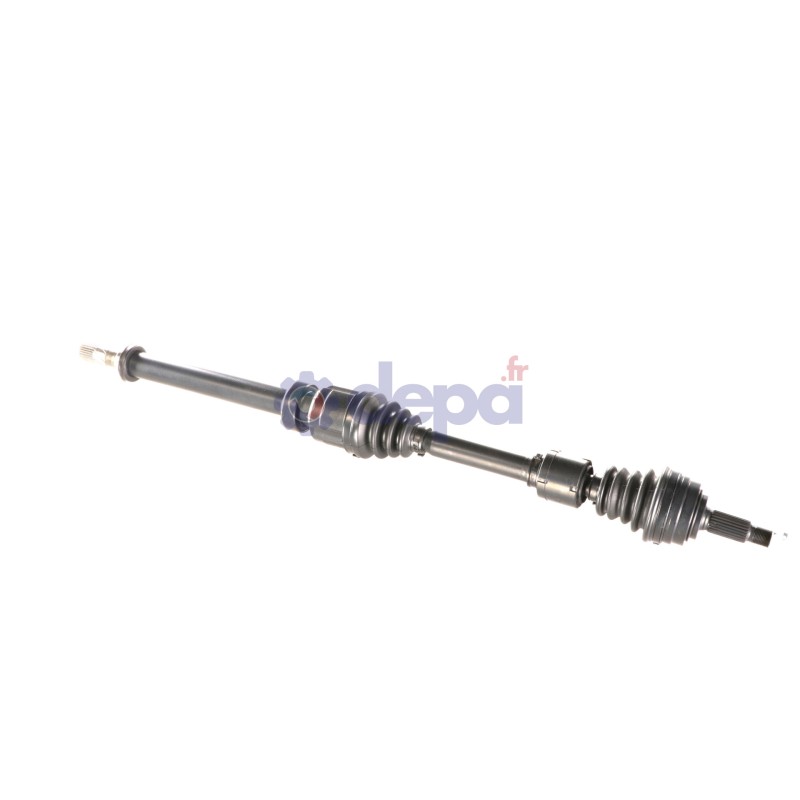

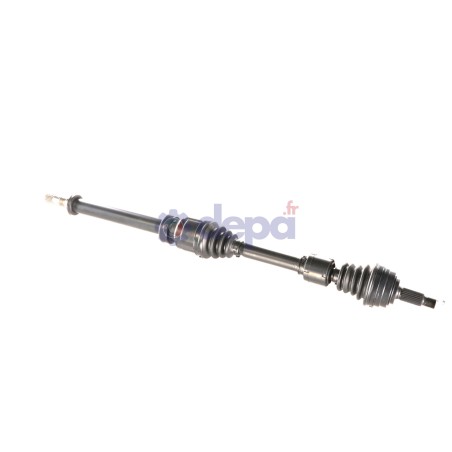

RENAULT CLIO V RIGHT-SIDE

Name: RENAULT CLIO V RIGHT-SIDE
Brand: Depa
SKU: 3104700
Price: 308.91 EUR
Availability: InStock

Ref : 3104700

Matching vehicles :

CLIO 5

Family :TR

Height : 16.5 mm

Compressed length : 905 mm

Length of the shaft (including bearing unit) : 345 mm

Observations : For 16/17" rims

ABS on the vehicle : Yes

Thread pitch type : 20X150

Nut type : Lock

JOINT HOMOCINETIQUE COTE BOITE

Seal seat diameter : 33 mm

Outer spline diameter : 26.5 mm

Housing diameter : 76 mm

Length of the shaft (including bearing unit) : 345 mm

Length of the gearbox output without seal seat : 63 mm

Number of external splines : 26

JOINT HOMOCINETIQUE COTE ROUE

Diamètre des cannelures extérieures : 25 mm

Diamètre du bol : 75.4 mm

Shoulder diameter : 49.5 mm

Nombre de cannelures extérieures : 23

Number of splines on inner race : 30

Observations : Threading length 30mm Ø20mm

Type and position (snap ring/circlip) : Internal snap ring

ROULEMENT COTE BOITE

Outer diameter : 62 mm

Inner diameter : 35 mm

Width : 20 mm

SOUFFLET COTE BOITE

Diameter (big) : 59.5 mm

Diameter (little) : 22.5 mm

Beads thickness : 7 mm

Length : 94 mm

Type of material : Neoprene

SOUFFLET COTE ROUE

Diamètre (grand) : 68 mm

Diamètre (petit) : 18 mm

Longueur : 97 mm

Number of grooves : 1

Type de matière : NÉOPRÈNE

TRIAXE COTE BOITE

Bearing roller diameter : 35 mm

Height : 24.5 mm

Number of splines : 30

CV joint	COTE ROUE	JR47
CV joint	COTE BOITE	PALCBMR47DT
Sealing kit	COTE ROUE	5002
Sealing kit	COTE BOITE	6192
Fixation	COTE ROUE	EC005
Tripod joint	COTE BOITE	TRIR12
Bearing	COTE BOITE	RLT006

Equivalence to manufacturer references

RENAULT : 391000823R
